High Conductivity Thermal Gel 5.0W/MK Insulation Thermal Conductive Gel Suitable For PCB Applications

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL
Model Number:	TIF050-11-1

Payment & Shipping Terms:

Minimum Order Quantity:	1000tube
Price:	0.1-100USD/KG
Packaging Details:	300cc/PCS，6PCS/Box
Delivery Time:	3-8 WORK DAYS
Payment Terms:	T/T
Supply Ability:	10000KG/MONTH

Contact Now

Detailed Product Description

Products Name:	High Conductivity Thermal Gel 5.0W/MK Insulation Thermal Conductive Gel Suitable For PCB Applications	Specific Gravity:	3.25 G/cc
Color:	Dark Gray	Materail:	Ceramic Filled Silicon Material
Breakdown Voltage (V/mm):	≥6000	Thermal Conductivity:	5.0W/m-K
Keyword:	Thermal Gel	Application:	PCB Applications
Dielectric Constant @1MHz:	7.7

High Conductivity Thermal Gel 5.0W/MK Insulation Thermal Conductive Gel Suitable For PCB Applications

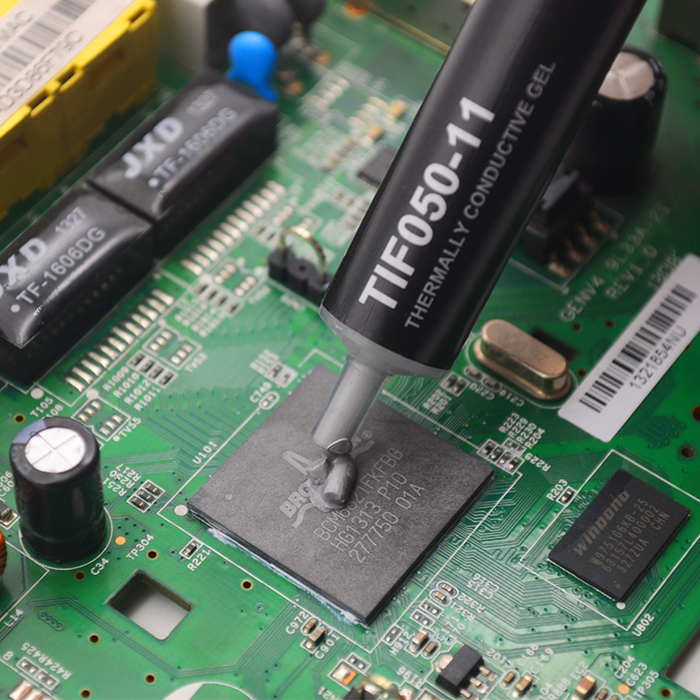

TIF^®050-11-1 is a thermally conductive paste with excellent interface thermal resistance characteristics and outstanding plasticity, capable of fully meeting the strict thermal management performance requirements of various designs; this material has extremely low hardness, possesses free-forming ability, and is easy to construct and assemble, demonstrating good stability in high-temperature environments. Its low-stress characteristics are particularly suitable for electronic devices that require high precision and high reliability, effectively reducing the mechanical stress on sensitive components during assembly and operation, ensuring the long-term stable operation of products in various application environments.

Feature

> Thermal conductivity: 5.0 W/mK
> Low stress, protect sensitive components.
> Strong plasticity. good stability
> Superior dielectric properties

Application

> Power module
> LED backlight module, LED lighting
> High speed hardware driver
> Micro heat pipe
> Vihicel enginee controller
> Telecom industry
> Semiconductor automatic laboratory equipment

TIF^®050-11-1 Typical Properties
Property	Value	Test method
Color	Dark Gray	Visual
Construction & Composition	Ceramic filled silicon material	******
Density(g/cm³)	3.25g/c	ASTM D792
Thermal conductivity	5.0W/mK	ASTM D5470
Breakdown Voltage (V/mm)	≥6000	ASTM D149
Dielectric constant @1MHz	7.7	ADTM D150
Flame Rating	V-0	UL 94
Volume resistivity(Ohm.cm)	8.0 X 10¹³	ASTM D257

Packing details

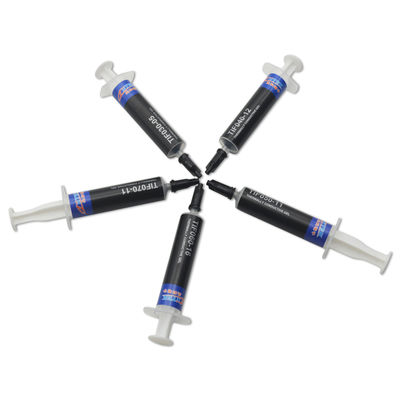

30 cc/pc, 98 pc/box;

300 cc/pc , 6 pc/box

We offer the custom packaged in syringes for automated despensing applications.

Please contact us for confirming.
