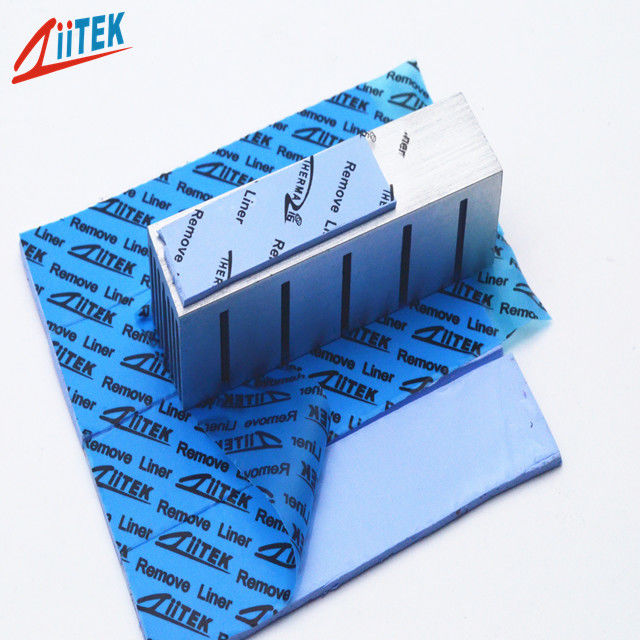

1.5W/MK Thermal Conductive Silicone Pad High Voltage GPU CPU Heatsink Cooling Insulation

1.5W/MK Thermal Conductive Silicone Pad High Voltage GPU CPU Heatsink Cooling Insulation

1.5W/MK Thermal Conductive Silicone Pad High Voltage GPU CPU Heatsink Cooling Insulation
video
1.5W/MK Thermal Conductive Silicone Pad High Voltage GPU CPU Heatsink Cooling Insulation
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL & RoHS
Model Number: TIF160-05E Series
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*13*12cm cartons
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 1000000 pcs/month
Contact Now
Detailed Product Description
Products Name: 1.5W/mK Thermal Conductive Silicone Pad High Voltage GPU CPU Heatsink Cooling Insulation Thickness: 1.5mmT
Specific Gravity: 2.3 G/cc Dielectric Breakdown Voltage: >5500 VAC
Thermal Conductivity: 1.5W/m-K Color: Blue
Keywords: Thermal Conductive Silicone Pad Application: GPU CPU Heatsink
Highlight:

Thermal Conductive Silicone Pad 1.5mmT

,

Rom Cooling Thermal Conductive Silicone Pad 1.5mmT

,

UL thermally conductive silicone sheet

1.5W/MK Thermal Conductive Silicone Pad High Voltage GPU CPU Heatsink Cooling Insulation


The TIF160-05E Series use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.

Features


> Good thermal conductive
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses

> RoHS compliant
> UL recognized

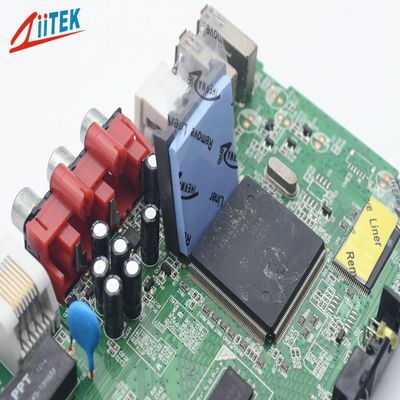

Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware

> GPU CPU Heatsink

Typical Properties of TIF160-05E Series
Property Value Test method
Color Blue Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density 2.3g/cm³ ASTM D297
Thickness range 0.020"(0.5mm)~0.200"(5.0mm) ******
Hardness 35 Shore 00 ASTM 2240
Continuos Use Temp -40 to 160℃ ******
Dielectric Breakdown Voltage >5500 VAC ASTM D149
Dielectric Constant 4.7 MHz ASTM D150
Volume Resistivity(Ohm-cm) 1.0X1012 ASTM D257
Fire rating 94 V0 UL E331100
Thermal conductivity 1.5W/m-K ASTM D5470

Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
Individual die cut shapes and custom thickness can be supplied.



Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.

Request adhesive on double side with "A2" suffix.



Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.

1.5W/MK Thermal Conductive Silicone Pad High Voltage GPU CPU Heatsink Cooling Insulation 0

Company profile



Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.



Our services



Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples



After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.



FAQ



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge

Q: Do you offer free samples ?

A: Yes, we are willing to offer free sample.
