Name: High Durability Good Thermal Conductive 1.5W Thermal Conductive Silicone Pad For Routers
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF180-05E Series
Price: 4.10 USD
Availability: InStock

Home Products Silicone Thermal Pad

High Durability Good Thermal Conductive 1.5W Thermal Conductive Silicone Pad For Routers

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL & RoHS
Model Number:	TIF180-05E Series

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	1000000 pcs/month

Contact Now

Detailed Product Description

Products Name:	High Durability Good Thermal Conductive 1.5W Thermal Conductive Silicone Pad For Routers	Thickness:	2.0mmT
Specific Gravity:	2.13 G/cc	Dielectric Breakdown Voltage:	>5500 VAC
Thermal Conductivity:	1.5W/m-K	Color:	Blue
Material:	Ceramic Filled Silicone Elastomer	Allication:	Routers
Highlight:	2.13 G/Cc Thermal Conductive Silicone Pad , Thermal Conductive Silicone Pad 2mmT , thermally conductive silicone sheet 94 V0

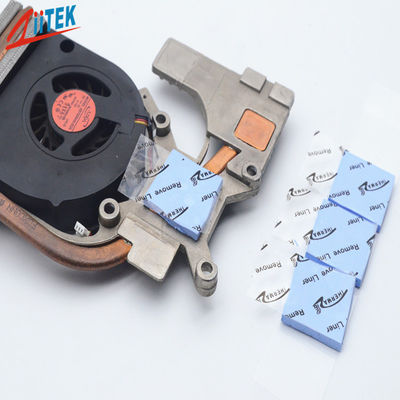

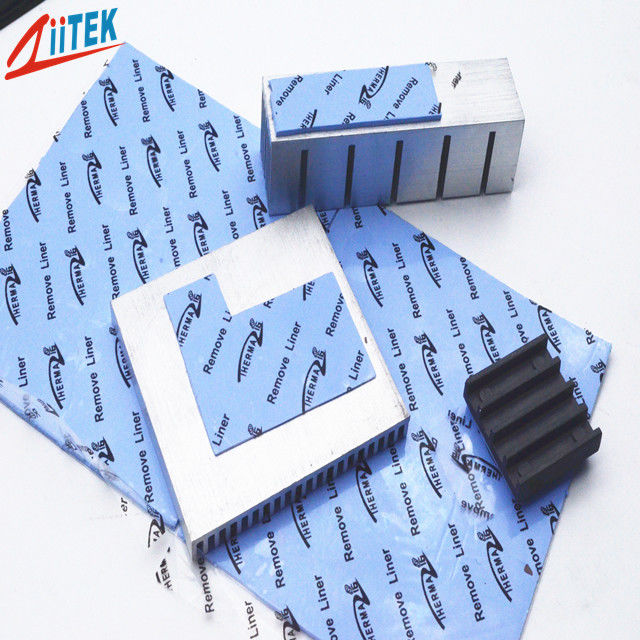

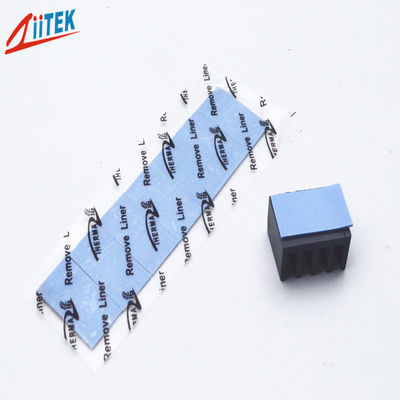

High Durability Good Thermal Conductive 1.5W Thermal Conductive Silicone Pad For Routers

The TIF180-05E Series is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

Features
> Good thermal conductive: 1.5W/mK
> Available in varies thickness
> UL recognized
> Broad range of hardnesses available
> High tack surface reduces contact resistance

> Easy release construction
> Electrically isolating
> High durability

Applications
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> CPU
> Memory Modules
> Routers
> Telecommunication hardware

Typical Properties of TIF180-05E Series
Color	Blue	Visual	Composite Thickness	Thermal Impedance @10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone elastomer	******	10mils / 0.254 mm	0.16
			20mils / 0.508 mm	0.20
Specific Gravity	2.3 g/cc	ASTM D297	30mils / 0.762 mm	0.31
			40mils / 1.016 mm	0.36
Thickness range	0.020"(0.5mm)-0.200"(5.0mm)	ASTM C351	50mils / 1.270 mm	0.42
			60mils / 1.524 mm	0.48
Hardness	35 Shore 00	ASTM 2240	70mils / 1.778 mm	0.53
			80mils / 2.032 mm	0.63
Dielectric Breakdown Voltage	>5500 VAC	ASTM D412	90mils / 2.286 mm	0.73
			100mils / 2.540 mm	0.81
Continuos Use Temp	-45 to 200℃	*****	110mils / 2.794 mm	0.86
			120mils / 3.048 mm	0.93
Outgassing(TML)	0.35%	ASTM E595	130mils / 3.302mm	1.00
			140mils /3.556 mm	1.08
Dielectric Constant	4.7 MHz	ASTM D150	150mils / 3.810 mm	1.13
			160mils / 4.064 mm	1.20
Volume Resistivity	1.0X10¹² Ohm-meter	ASTM D257	170mils / 4.318 mm	1.24
			180mils / 4.572 mm	1.32
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	1.41
			200mils / 5.080 mm	1.52
Thermal conductivity	1.5W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470

Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
Individual die cut shapes and custom thickness can be supplied.

Pleas contact us for confirming.

Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.

Request adhesive on double side with "A2" suffix.

High Durability Good Thermal Conductive 1.5W Thermal Conductive Silicone Pad For Routers 0

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract
