Telephone Cooling Conductive Insulation Thermal Pad Adhesion Thermal Conductive Silicone Pad

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL & RoHS
Model Number:	TIF160-07E Series

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	1000000 pcs/month

Contact Now

Detailed Product Description

Products Name:	Telephone Cooling Conductive Insulation Thermal Pad Adhesion Thermal Conductive Silicone Pad	Thickness:	1.5mmT
Specific Gravity:	2.15 G/cc	Dielectric Breakdown Voltage:	>5000 VAC
Thermal Conductivity:	1.5W/m-K	Color:	Green
Keywords:	Thermal Pad	Sample:	Sample Available
Application:	Electronic Component Gap Filling
Highlight:	Silicon Thermal Pad 2.15g/Cc , RoHS Naturally Tacky Silicon Thermal Pad , 1.5mmT heat conductive pad

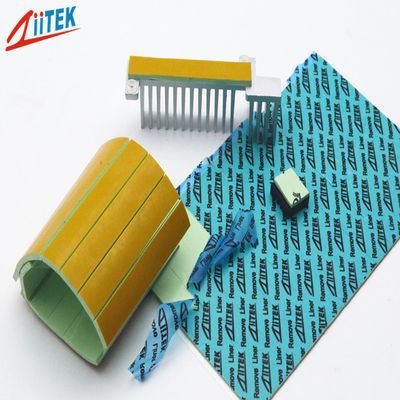

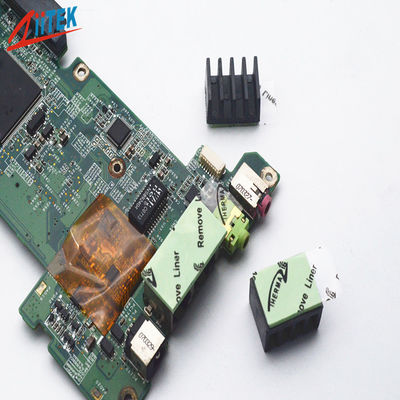

Telephone Cooling Conductive Insulation Thermal Pad Adhesion Thermal Conductive Silicone Pad

The TIF160-07E Series is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.

Features
> Good thermal conductive: 1.5W/mK
> Available in varies thickness
> UL recognized
> Broad range of hardnesses available
> High tack surface reduces contact resistance

> Electrically isolating

> RoHS compliant

Applications
> LED TV / LED Lit Lamps
> CD-Rom, DVD-Rom cooling
> SAD-DC Power Adapters
> CPU
> Memory Modules
> Heat pipe thermal solutions
> Mass storage devices
> Automotive electronics
> Radios
> Power electronics

Typical Properties of TIF160-07E Series
Color	Green	Visual	Composite Thickness	Thermal Impedance @10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone elastomer	***	10mils / 0.254 mm	0.16
			20mils / 0.508 mm	0.20
Specific Gravity	2.3g/cc	ASTM D297	30mils / 0.762 mm	0.31
			40mils / 1.016 mm	0.36
Thickness range	0.020"-0.200"(0.5mm~5.0mm)	ASTM C351	50mils / 1.270 mm	0.42
			60mils / 1.524 mm	0.48
Hardness	35Shore 00	ASTM 2240	70mils / 1.778 mm	0.53
			80mils / 2.032 mm	0.63
Dielectric Breakdown Voltage	>5500 VAC	ASTM D412	90mils / 2.286 mm	0.73
			100mils / 2.540 mm	0.81
Continuos Use Temp	-45 to 200℃	***	110mils / 2.794 mm	0.86
			120mils / 3.048 mm	0.93
Outgassing(TML)	0.35%	ASTM E595	130mils / 3.302mm	1.00
			140mils /3.556 mm	1.08
Dielectric Constant	4.7 MHz	ASTM D150	150mils / 3.810 mm	1.13
			160mils / 4.064 mm	1.20
Volume Resistivity	1.0X10¹² Ohm-meter	ASTM D257	170mils / 4.318 mm	1.24
			180mils / 4.572 mm	1.32
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	1.41
			200mils / 5.080 mm	1.52
Thermal conductivity	1.5W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)

16" x 18"(406mm x 457mm)

TIF™ series Individual die cut shapes can be supplied.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
