Electrically Insulated Silicone Thermal Pad Thermally Conductive Silicon Material For Display Card

Electrically Insulated Silicone Thermal Pad Thermally Conductive Silicon Material For Display Card

Electrically Insulated Silicone Thermal Pad Thermally Conductive Silicon Material For Display Card
video
Electrically Insulated Silicone Thermal Pad Thermally Conductive Silicon Material For Display Card
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL & RoHS
Model Number: TIF1100-07E Series
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*13*12cm cartons
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 1000000 pcs/month
Contact Now
Detailed Product Description
Products Name: Electrically Insulated Silicone Thermal Pad Thermally Conductive Silicon Material For Display Card Thickness: 2.5mmT
Specific Gravity: 2.3g/cc Dielectric Breakdown Voltage: >5500 VAC
Thermal Conductivity: 1.5W/m-K Color: Green
Keywords: Silicone Thermal Pad Sample: Sample Free
Application: GPU CPU Chip Display Card
Highlight:

Telecommunication Hardware Thermal Conductive Silicone Pad

,

Thermal Conductive Silicone Pad 2.5mmT

,

Silicone Thermal Pad 94 V0

Electrically Insulated Silicone Thermal Pad Thermally Conductive Silicon Material For Display Card


The TIF1100-07E Series is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

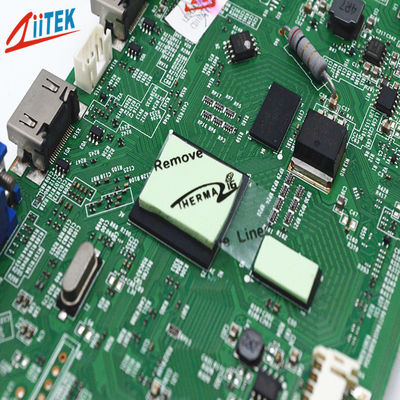

Electrically Insulated Silicone Thermal Pad Thermally Conductive Silicon Material For Display Card 0
Features
> Good thermal conductive: 1.5W/mK
> Available in varies thickness
> UL recognized and RoHS compliant
> Broad range of hardnesses available
> High tack surface reduces contact resistance

> Electrically isolating


Applications
> LED TV / LED Lit Lamps
> CD-Rom, DVD-Rom cooling
> SAD-DC Power Adapters
> CPU
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions



Typical Properties of TIF1100-07E Series
Property Value Test method
Color Green Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density 2.3g/cm³ ASTM D297
Thickness range 0.020"(0.5mm)~0.200"(5.0mm) ASTM D374
Hardness 35 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage >5500 VAC ASTM D149
Dielectric Constant 4.7 MHz ASTM D150
Volume Resistivity(Ohm-cm) 1.0X1012 ASTM D257
Fire rating 94 V0 UL E331100
Outgassing(TML) 0.35% ASTM E595
Thermal conductivity 1.5W/m-K ASTM D5470



Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

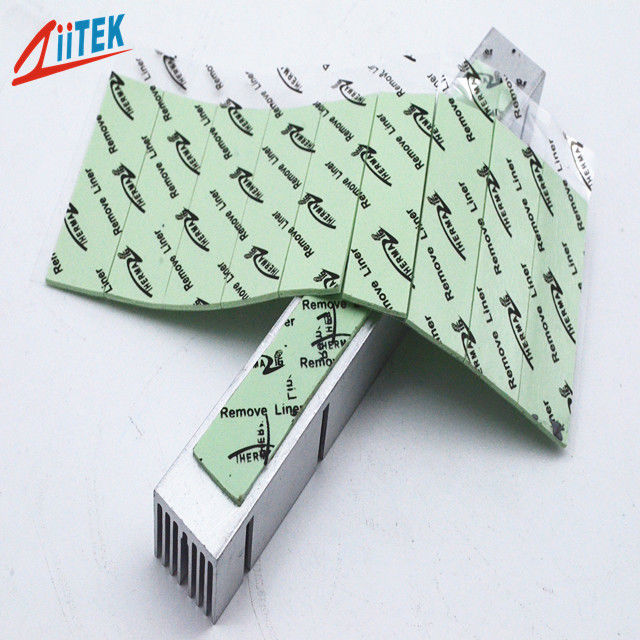

Electrically Insulated Silicone Thermal Pad Thermally Conductive Silicon Material For Display Card 1

Company Profile



Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.



Independent R&D team



Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us

4. We will reply you as soon as possible with Email or online



FAQ



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.

Q: What kind of packaging you offer?

A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
