Name: 4.0mmt Heat Sink Thermal Pad Performance Insulation Silicone For Led Ceiling Lamp
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF1160-30-06UF thermal pad
Price: 4.10 USD
Availability: InStock

Home Products Heat Sink Thermal Pad

4.0mmt Heat Sink Thermal Pad Performance Insulation Silicone For Led Ceiling Lamp

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL
Model Number:	TIF1160-30-06UF thermal pad

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	0.1-10 USD/PCS
Packaging Details:	252413cm canton
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Material:	Silicone	Application:	Telecommunication Hardware
Name:	4.0mmT Good Performance And Insulation Silicone Pads For LED Ceilinglamp	Thermal Conductivity:	3.0 W/mK
Volume Resistivity:	2.3*1013 Ohm-cm	Keyword:	Thermal Gap Pad
Highlight:	heat sink thermal pad 4mm , ceiling lamp heat sink thermal pad , heat sink pad 4mm

4.0mmT Good Performance and Insulation Silicone Pads for LED Ceilinglamp

Company Profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

TIF100-30-06UF-Series-Datasheet-.pdf

Ziitek TIF1160-30-06UF is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF1160-30-06UF is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.

<Good thermal conductive:3.0 W/mK

<Thickness: 4.0mmT

<Hardness:75±5 Shore 00

<Colour: White

<Good thermal conductive

<Moldability for complex parts

<Soft and compressible for low stress applications

Applications

<cooling components to the chassis of frame

<High speed mass storage drives

<Heat Sinking Housing at LED-lit BLU in LCD

<LED TV and LED-lit lamps

<RDRAM memory modules

<Micro heat pipe thermal solutions

Typical Properties of TIF1160-30-06UF
Product Name	TIF1160-30-06UF Series
Colour	White
Construction & Compostion	Ceramic filled silicone elastomer
Specific gravity	3.0 g/cc
Thickness	4.0mmT
Hardness	75±5 Shore 00
Dielectric constant@1MHz	5.0 MHz
Continuos Use Temp	-40 to 160℃
Dielectric Breakdown Voltage	>5500 VAC
Thermal conductivity	3.0 W/mK
Volume Resistivity	2.3*10^13 _Ohm-cm

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)

TIF™ series Individual die cut shapes can be supplied.

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract

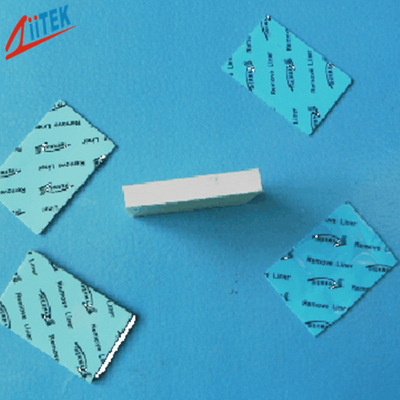

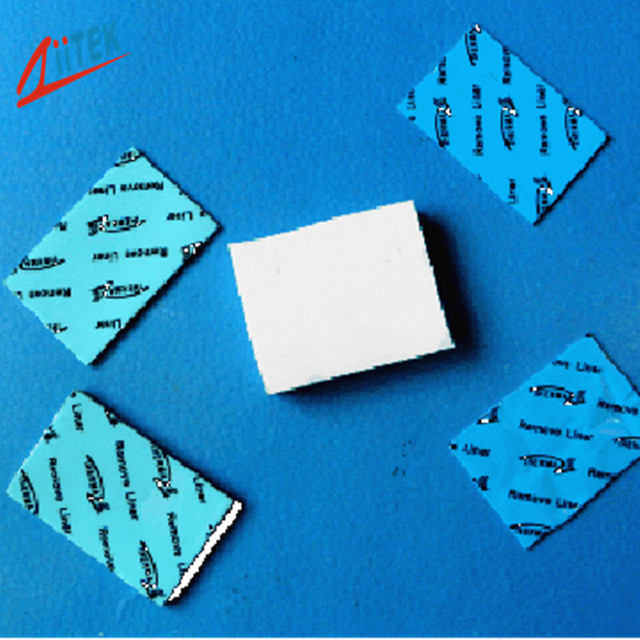

4.0mmt Heat Sink Thermal Pad Performance Insulation Silicone For Led Ceiling Lamp 1

FAQ

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
