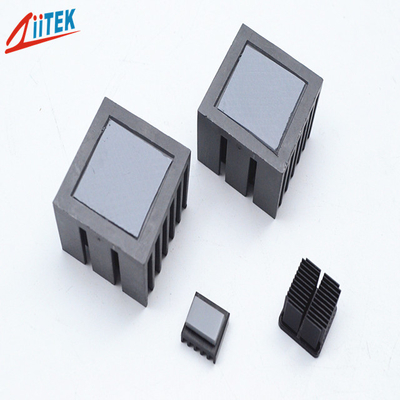

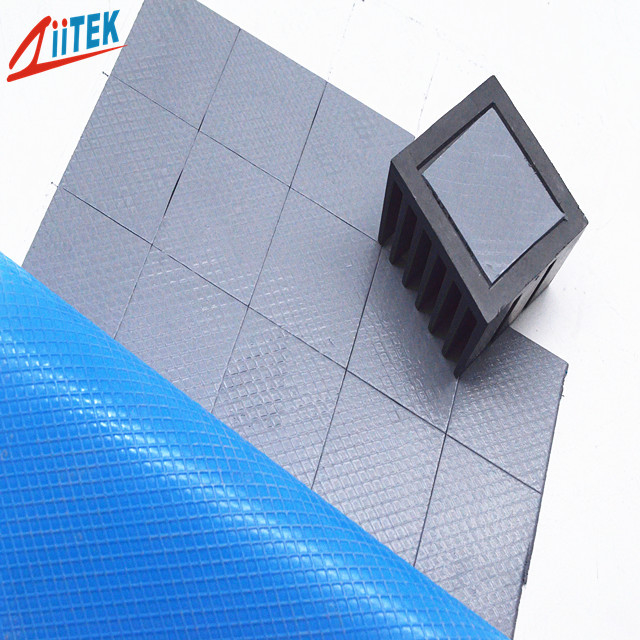

Dielectric Constant 3.9 Mhz Heat Sink Thermal Pad Rohs Compliant Gray For Routers

Dielectric Constant 3.9 Mhz Heat Sink Thermal Pad Rohs Compliant Gray For Routers

Dielectric Constant 3.9 Mhz Heat Sink Thermal Pad Rohs Compliant Gray For Routers
video
Dielectric Constant 3.9 Mhz Heat Sink Thermal Pad Rohs Compliant Gray For Routers
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF140-10UF thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Dielectric Constant: 3.9 MHz Keyword: Thermal Gap Pad
Name: Dielectric Constant 3.9 MHz RoHS Compliant Gray Heat Sink Pad For Routers Specific Gravity: 2.2 G/cc
Certification: IATF16949 Volume Resistivity: 1.0*10^12 Ohm-cm
High Light:

3.9 mhz heat sink thermal pad

,

routers heat sink thermal pad

,

heat sink pad for routers

Dielectric constant 3.9 MHz RoHS Compliant Gray Heat Sink Pad for Routers​



Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.



TIF100-10UF-Datasheet-REV02.pdf



Ziitek TIF140-10UF is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.




<Good thermal conductive:1.5 W/mK
<Thickness: 1.0mmT
<Hardness:75 Shore 00
<Colour: Gray

<Easy release construction
<Electrically isolating
<High durability






Applications

<Waterproof LED Power
<SMD LED module
<LED Flesible strip, LED bar
<LED PanelLight
<LED floor light
<Routers



Typical Properties of TIF140-10UF

Product Name TIF140-10UF Series
Colour gray
Construction & Compostion Ceramic filled silicone elastomer
Specific gravity 2.2 g/cc
Thickness 1.0mmT
Hardness 75 Shore 00
Dielectric constant@1MHz 3.9 MHz
Continuos Use Temp -40 to 160℃
Dielectric Breakdown Voltage >5500 VAC
Thermal conductivity 1.5 W/mK
Volume Resistivity 1.0*1012 Ohm-cm






Standard Sheets Sizes:
8" x 16"(203mm x 406mm)

TIF™ series Individual die cut shapes can be supplied.





Dielectric Constant 3.9 Mhz Heat Sink Thermal Pad Rohs Compliant Gray For Routers 0






Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract



Dielectric Constant 3.9 Mhz Heat Sink Thermal Pad Rohs Compliant Gray For Routers 1

FAQ
Q:Do big buyers have promotional prices?
A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.
