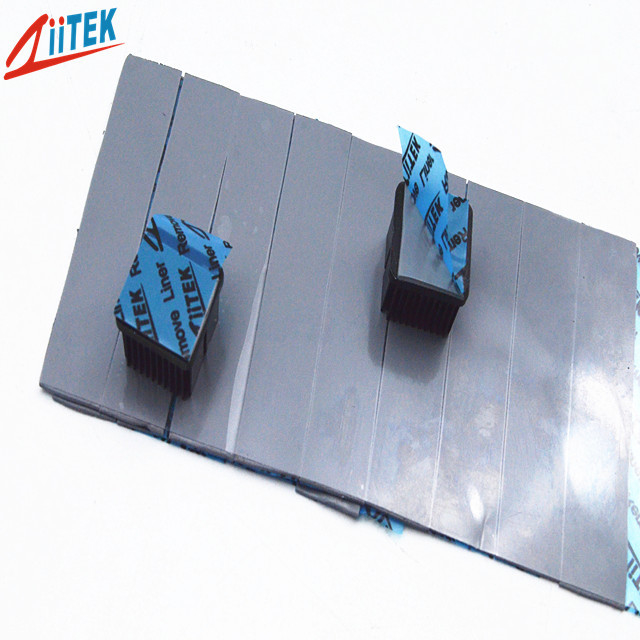

Thermal Conductivity 1.5 W/Mk Thermal Conductive Pads Heatsink For Display Card

Thermal Conductivity 1.5 W/Mk Thermal Conductive Pads Heatsink For Display Card

Thermal Conductivity 1.5 W/Mk Thermal Conductive Pads Heatsink For Display Card
video
Thermal Conductivity 1.5 W/Mk Thermal Conductive Pads Heatsink For Display Card
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF160-10UF thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Volume Resistivity: 1.0*10^12 Ohm-cm Name: Thermal Conductivity 1.5 W/mK Conductive Pads Good Thermal Conductive For Display Card
Dielectric Constant: 3.9 MHz Keyword: Thermal Gap Pad
Certification: ISO9001 Specific Gravity: 2.2 G/cc
High Light:

1.5 w/mk thermal conductive pads heatsink

,

1.5mm thermal conductive pads heatsink

,

heat sink pad for display card

Thermal Conductivity 1.5 W/mK Conductive Pads Good Thermal Conductive for Display Card



Company Profile
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market.
Our vast experience allows us to assist our customers best in thermal engineering field.
We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!



TIF100-10UF-Datasheet-REV02.pdf



Ziitek TIF160-10UF is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF160-10UF is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.



<Good thermal conductive:1.5 W/mK
<Thickness: 1.5mmT
<Hardness:75 Shore 00
<Colour: Gray

<Good thermal conductive
<Moldability for complex parts
<Soft and compressible for low stress applications






Applications

<Automotive engine control units
<Telecommunication hardware
<Handheld portable electronics
<Semiconductor automated test equipment (ATE)
<CPU

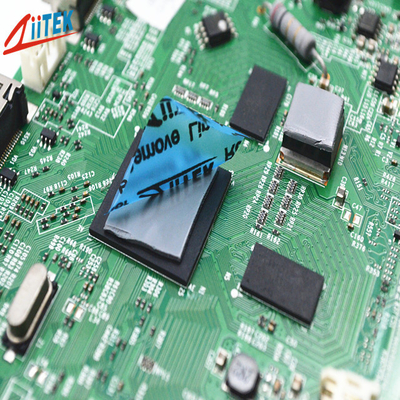

<display card



Typical Properties of TIF160-10UF

Product Name TIF160-10UF Series
Colour gray
Construction & Compostion Ceramic filled silicone elastomer
Specific gravity 2.2 g/cc
Thickness 1.5mmT
Hardness 75 Shore 00
Dielectric constant@1MHz 3.9 MHz
Continuos Use Temp -40 to 160℃
Dielectric Breakdown Voltage >5500 VAC
Thermal conductivity 1.5 W/mK
Volume Resistivity 1.0*1012 Ohm-cm






Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.



Thermal Conductivity 1.5 W/Mk Thermal Conductive Pads Heatsink For Display Card 0






Ziitek Culture

Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.



Thermal Conductivity 1.5 W/Mk Thermal Conductive Pads Heatsink For Display Card 1
