| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF1160-10UF thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Keyword: | Thermal Gap Pad | Name: | Gray Low Cost Silicone Pads For Waterproof LED Power, Dielectric Breakdown Voltage >5500 VAC |
|---|---|---|---|
| Specific Gravity: | 2.2 G/cc | Dielectric Constant: | 3.9 MHz |
| Dielectric Breakdown Voltage: | >5500 VAC | Feature: | Electrically Isolating |
| High Light: | gray silicone heat sink thermal pad,1.5 W/mK heat sink thermal pad,waterproof led power heat sink pad |
||
Gray Low Cost Silicone Pads for Waterproof LED Power, Dielectric Breakdown Voltage >5500 VAC
Company Profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
TIF100-10UF-Datasheet-REV02.pdf

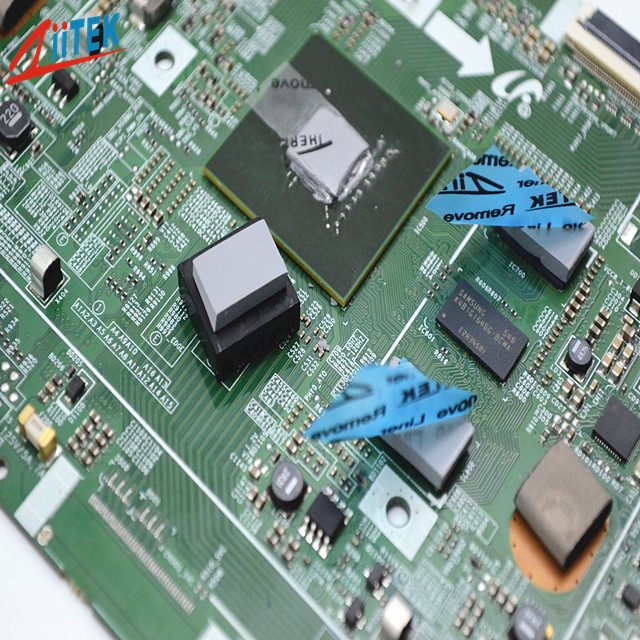

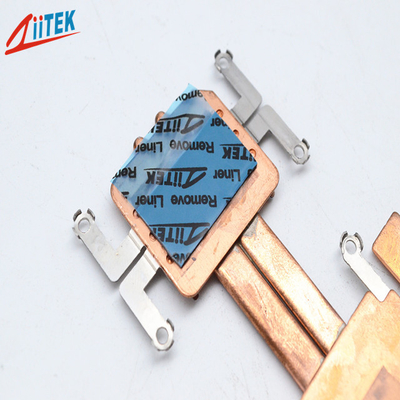

Ziitek TIF1160-10UF is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF1160-10UF is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
<Good thermal conductive
<Moldability for complex parts
<Soft and compressible for low stress applications
<Waterproof LED Power
<SMD LED module
<LED Flesible strip, LED bar
<LED PanelLight
<LED floor light
<Routers
Typical Properties of TIF1160-10UF | |||
| Product Name | TIF1160-10UF Series | ||
| Colour | gray | ||
| Construction & Compostion | Ceramic filled silicone elastomer | ||
| Specific gravity | 2.2 g/cc | ||
| Thickness | 4.0mmT | ||
| Hardness | 75 Shore 00 | ||
| Dielectric constant@1MHz | 3.9 MHz | ||
| Continuos Use Temp | -40 to 160℃ | ||
| Dielectric Breakdown Voltage | >5500 VAC | ||
| Thermal conductivity | 1.5 W/mK | ||
| Volume Resistivity | 1.0*1012 Ohm-cm | ||
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online
FAQ
Q:How can we get detailed price list?
A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.
Q: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
