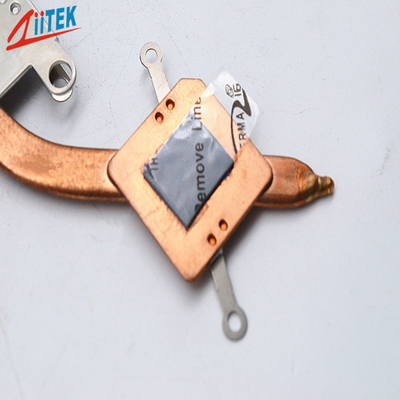

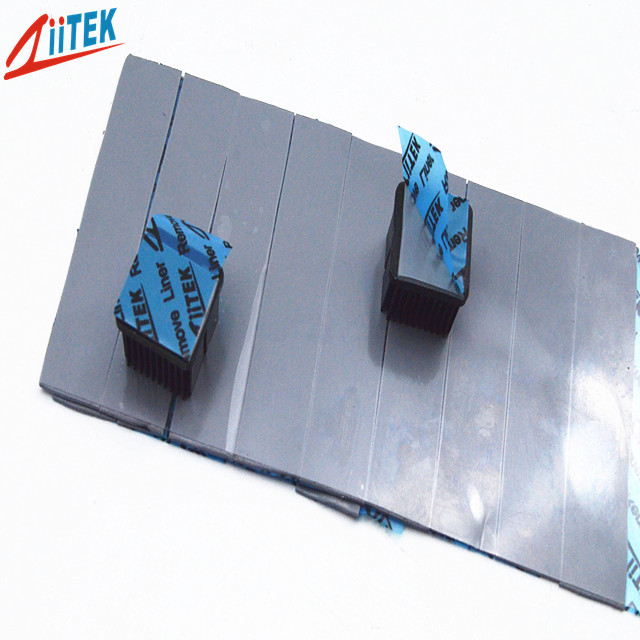

0.5mmT Heat Sink Insulation Pad Silicone For LED TV

0.5mmT Heat Sink Insulation Pad Silicone For LED TV

  • 0.5mmT Heat Sink Insulation Pad Silicone For LED TV
  • 0.5mmT Heat Sink Insulation Pad Silicone For LED TV
0.5mmT Heat Sink Insulation Pad Silicone For LED TV
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF120-20-10UF thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Keyword: Thermal Gap Pad Feature: Good Thermal Conductive
Name: 0.5mmT Moldability For Complex Parts Silicone Pads For LED TV Color: Gray
Thickness: 0.5mmT Hardness: 75 Shore 00
High Light:

0.5mm Heat Sink Insulation Pad


LED TV Heat Sink Insulation Pad


0.5mm Thermal Pad For Heat Sink

0.5mmT Moldability for Complex Parts Silicone Pads for LED TV


Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.




Ziitek TIF120-20-10UF use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.


<Good thermal conductive: 2.0 W/mK
<Thickness: 0.5mmT
<Hardness:75 Shore 00
<Colour: gray

<Good thermal conductive
<Moldability for complex parts
<Soft and compressible for low stress applications




<cooling components to the chassis of frame

<High speed mass storage drives

<Heat Sinking Housing at LED-lit BLU in LCD

<LED TV and LED-lit lamps

<RDRAM memory modules

<Micro heat pipe thermal solutions

Typical Properties of TIF120-20-10UF
Product Name TIF120-20-10UF Series
Colour Gray
Construction & Compostion Ceramic filled silicone elastomer
Specific gravity 2.7 g/cc
Thickness 0.5mmT
Hardness 75 Shore 00
Dielectric constant@1MHz 4.6 MHz
Continuos Use Temp -40 to 160℃
Dielectric Breakdown Voltage >5500 VAC
Thermal conductivity 2.0W/mK
Volume Resistivity 1.0*1012 Ohm-cm




ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017
