Place of Origin: | China |
Brand Name: | Ziitek |
Certification: | UL |
Model Number: | TIF1120-20-10UF thermal pad |
Minimum Order Quantity: | 1000 pcs |
---|---|
Price: | 0.1-10 USD/PCS |
Packaging Details: | 25*24*13cm canton |
Delivery Time: | 3-8 work days |
Payment Terms: | T/T |
Supply Ability: | 100000pcs/month |
Certification: | ISO9001 | Name: | 2.0W/mK Naturally Tacky Needing No Further Adhesive Coating Conductive Pads For CPU |
---|---|---|---|
Feature: | High Durability | Keyword: | Thermal Gap Pad |
Continuos Use Temp: | -40 To 160℃ | Thickness: | 3.0mmT |
Highlight: | 2.0W/MK Heat Dissipation Pad,CPU Heat Dissipation Pad,2.0W/MK Thermal Pad For Heat Sink |

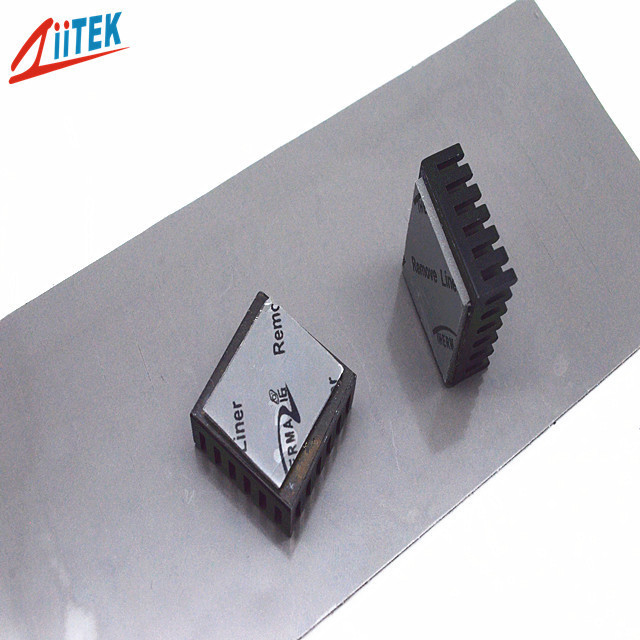

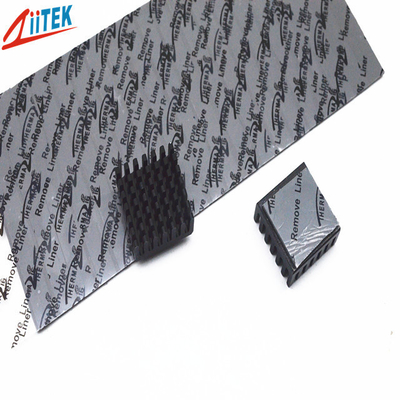

2.0W/mK Naturally Tacky Needing No Further Adhesive Coating Conductive Pads for CPU
Company Profile
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.
TIF100-20-10UF-Datasheet-REV02.pdf
Ziitek TIF1120-20-10UF use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
<Moldability for complex parts
<Soft and compressible for low stress applications
<Naturally tacky needing no further adhesive coating
<Automotive engine control units
<Telecommunication hardware
<Handheld portable electronics
<Semiconductor automated test equipment (ATE)
<CPU
<display card
Typical Properties of TIF1120-20-10UF
|
|||
Product Name | TIF1120-20-10UF Series | ||
Colour | Gray | ||
Construction & Compostion | Ceramic filled silicone elastomer | ||
Specific gravity | 2.7 g/cc | ||
Thickness | 3.0mmT | ||
Hardness | 75 Shore 00 | ||
Dielectric constant@1MHz | 4.6 MHz | ||
Continuos Use Temp | -40 to 160℃ | ||
Dielectric Breakdown Voltage | >5500 VAC | ||
Thermal conductivity | 2.0W/mK | ||
Volume Resistivity | 1.0*1012 Ohm-cm |
Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
