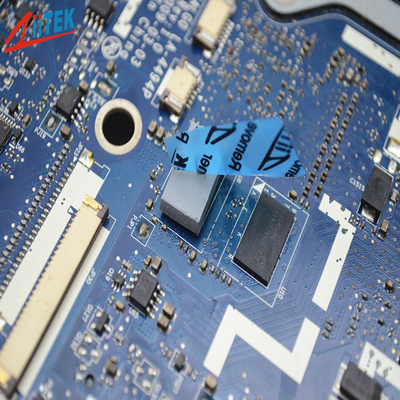

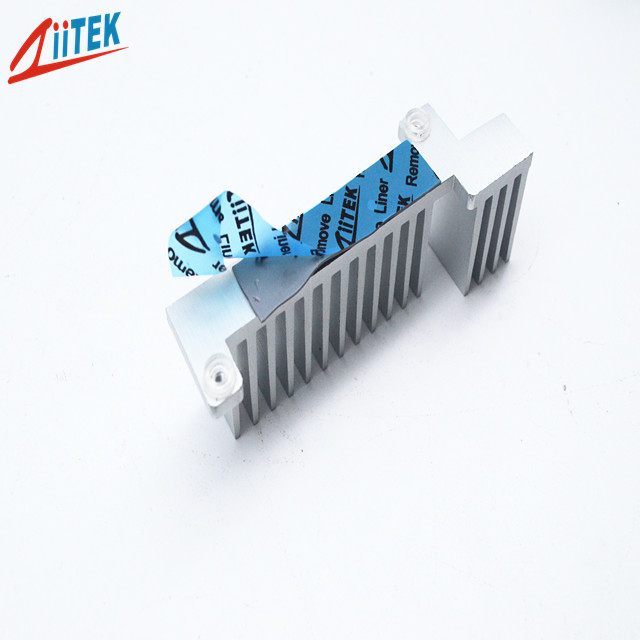

5.0mmT Conductive Pads Moldability For Complex Parts 75 Shore 00

5.0mmT Conductive Pads Moldability For Complex Parts 75 Shore 00

5.0mmT Conductive Pads Moldability For Complex Parts 75 Shore 00
video
5.0mmT Conductive Pads Moldability For Complex Parts 75 Shore 00
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF1200-20-10UF thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Part Number: TIF1200-20-10UF Name: 5.0mmT Conductive Pads Moldability For Complex Parts,75 Shore 00
Material: Silicone Dielectric Breakdown Voltage: >5500 VAC
Application: Video Components Keyword: Thermal Gap Pad
High Light:

75 Shore 00 conductive pads

,

5mm conductive pads

,

silicone 5 mm thermal pad

5.0mmT Conductive Pads Moldability for complex parts,75 Shore 00



Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.



TIF100-20-10UF-Datasheet-REV02.pdf



Ziitek TIF1200-20-10UF thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.




<Good thermal conductive: 2.0 W/mK
<Thickness: 5.0mmT
<Hardness:75 Shore 00
<Colour: gray

<Good thermal conductive
<Moldability for complex parts
<Soft and compressible for low stress applications








Applications

<LED Power Supply

<LED Controller

<LED Ceilinglamp

<Monitoring the Power Box

<AD-DC Power Adapters

<Rainproof LED Power






Typical Properties of TIF1200-20-10UF

Product Name TIF1200-20-10UF Series
Colour Gray
Construction & Compostion Ceramic filled silicone elastomer
Specific gravity 2.7 g/cc
Thickness 5.0mmT
Hardness 75 Shore 00
Dielectric constant@1MHz 4.6 MHz
Continuos Use Temp -40 to 160℃
Dielectric Breakdown Voltage >5500 VAC
Thermal conductivity 2.0W/mK
Volume Resistivity 1.0*1012 Ohm-cm



Standard Sheets Sizes:

8" x 16"(203mm x 406mm)



TIF™ series Individual die cut shapes can be supplied.



5.0mmT Conductive Pads Moldability For Complex Parts 75 Shore 00 0




Why Choose us ?



1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract



5.0mmT Conductive Pads Moldability For Complex Parts 75 Shore 00 1

FAQ

Q:Is there promotion price for big buyer?
A:Yes, we do have promotion price for big buyer. Please send us email for inquiry.
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
