| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF120N-40-10F thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Keyword: | Thermal Gap Pad | Material: | Silicone |
|---|---|---|---|
| Name: | 55±5 Shore 00 High Tack Surface Reduces Contact Resistance Thermal Pad For Routers | Part Number: | TIF120N-40-10F |
| Continuos Use Temp: | -40 To 160℃ | Dielectric Breakdown Voltage: | >5500 VAC |
| High Light: | high hardness heat conductive rubber pad,Routers heat conductive rubber pad,Routers thermal pad for heat sink |
||

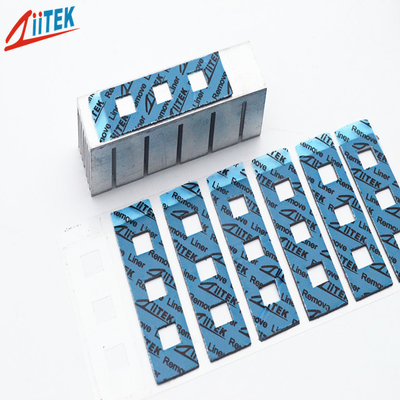

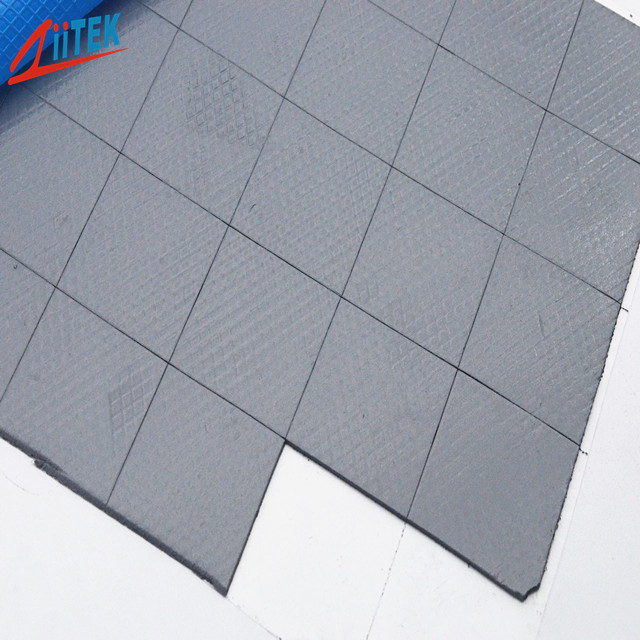

55±5 Shore 00 High Tack Surface Reduces Contact Resistance Thermal Pad for Routers
Company Profile
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market.
Our vast experience allows us to assist our customers best in thermal engineering field.
We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!
TIF100N-40-10F-Specification-sheet.pdf
Ziitek TIF120N-40-10F use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
<Naturally tacky needing no further adhesive coating
<Available in varies thicknesses
<Broad range of hardnesses available
<Waterproof LED Power
<SMD LED module
<LED Flesible strip, LED bar
<LED PanelLight
<LED floor light
<Routers
|
Typical Properties of TIF120N-40-10F
|
|||
| Product Name | TIF120N-40-10F Series | ||
| Colour | Gray | ||
| Construction & Compostion | Ceramic filled silicone elastomer | ||
| Specific gravity | 2.1 g/cm^3 | ||
| Thickness | 0.5mmT | ||
| Hardness | 55±5 Shore 00 | ||
| Dielectric constant@1MHz | 4.7 MHz | ||
| Continuos Use Temp | -40 to 160℃ | ||
| Dielectric Breakdown Voltage | >5500 VAC | ||
| Thermal conductivity | 4.0W/mK | ||
| Volume Resistivity | 1.0*1012 Ohm-cm | ||
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
FAQ
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of chargeContact Person: Miss. Dana
Tel: +86 18153789196
