| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF160N-40-10F thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Continuos Use Temp: | -40 To 160℃ | Material: | Silicone |
|---|---|---|---|
| Dielectric Breakdown Voltage: | >5500 VAC | Part Number: | TIF160N-40-10F |
| Keyword: | Thermal Gap Pad | Name: | 1.5mmT 4.0 W/mK UL Recognized Silicone Pads For High Speed Mass Storage Drives |
| High Light: | 1.5mm thermal conductive silicone pad,4.0 W/MK thermal conductive silicone pad,UL thermally conductive silicone sheet |
||
1.5mmT 4.0 W/mK UL Recognized Silicone Pads for High Speed Mass Storage Drives
Company Profile
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.
TIF100N-40-10F-Specification-sheet.pdf

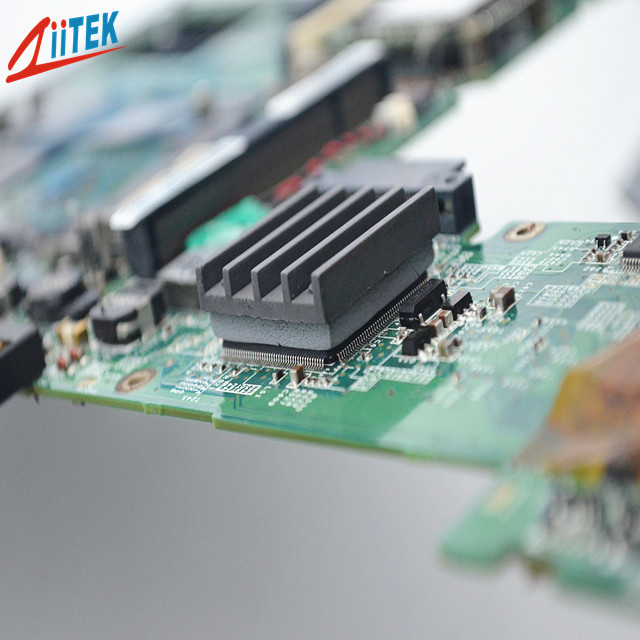

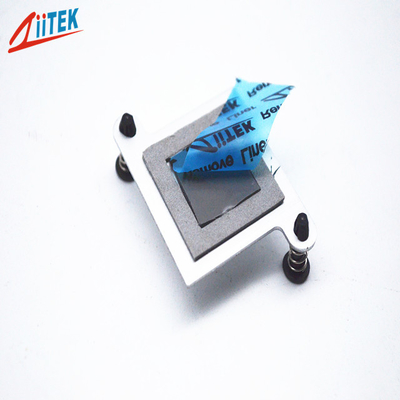

Ziitek TIF160N-40-10F is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF160N-40-10F is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
<RoHS compliant
<UL recognized
<Easy release construction
<cooling components to the chassis of frame
<High speed mass storage drives
<Heat Sinking Housing at LED-lit BLU in LCD
<LED TV and LED-lit lamps
<RDRAM memory modules
<Micro heat pipe thermal solutions
|
Typical Properties of TIF160N-40-10F
|
|||
| Product Name | TIF160N-40-10F Series | ||
| Colour | Gray | ||
| Construction & Compostion | Ceramic filled silicone elastomer | ||
| Specific gravity |
2.1 g/cm^3 |
||
| Thickness | 1.5mmT | ||
| Hardness | 55±5 Shore 00 | ||
| Dielectric constant@1MHz | 4.7 MHz | ||
| Continuos Use Temp | -40 to 160℃ | ||
| Dielectric Breakdown Voltage | >5500 VAC | ||
| Thermal conductivity | 4.0W/mK | ||
| Volume Resistivity | 1.0*1012 Ohm-cm | ||
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
