| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF1100N-40-10F thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Name: | 2.5mmT Gray Naturally Tacky Needing No Further Adhesive Coating Conductive Pads For CD-Rom | Application: | DVD-Rom Cooling |
|---|---|---|---|
| Material: | Silicone | Color: | Gray |
| Part Number: | TIF1100N-40-10F | Keyword: | Thermal Gap Pad |
| High Light: | 2.5mm heat sink thermal pad,CD Rom heat sink thermal pad,CD Rom heat sink pad |
||

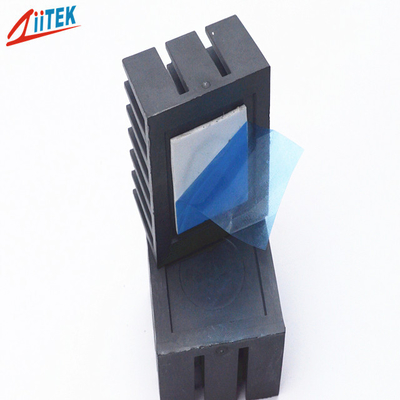

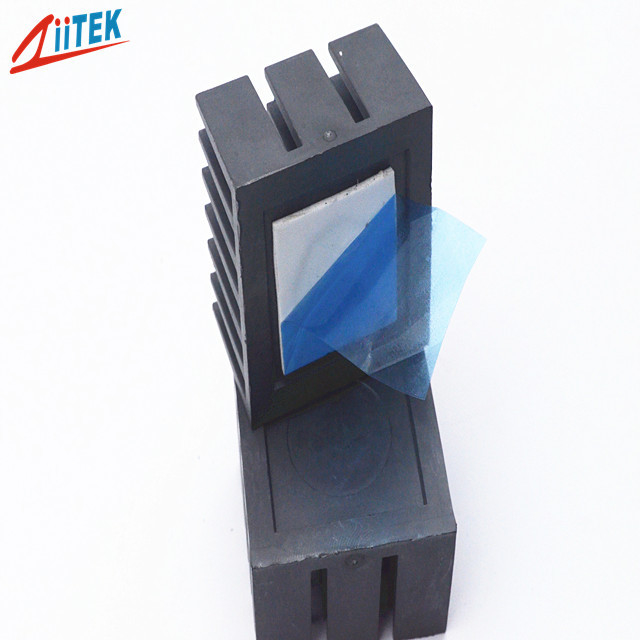

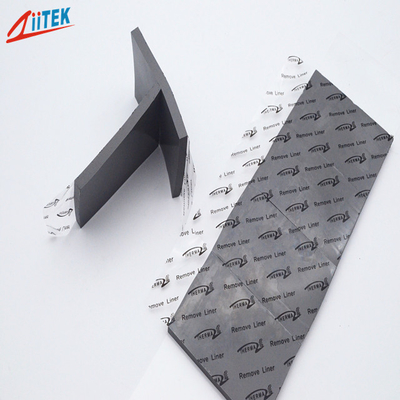

2.5mmT Gray Naturally Tacky Needing No Further Adhesive Coating Conductive Pads for CD-Rom
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
Ziitek TIF1100N-40-10F use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
<Moldability for complex parts
<Soft and compressible for low stress applications
<Naturally tacky needing no further adhesive coating
<Automotive electronics
<Set top boxes
<Audio and video components
<IT infrastructure
<GPS navigation and other portable devices
<CD-Rom, DVD-Rom cooling
Typical Properties of TIF1100N-40-10F | |||
| Product Name | TIF1100N-40-10F Series | ||
| Colour | Gray | ||
| Construction & Compostion | Ceramic filled silicone elastomer | ||
| Specific gravity | 2.1 g/cm^3 | ||
| Thickness | 2.5mmT | ||
| Hardness | 55±5 Shore 00 | ||
| Dielectric constant@1MHz | 4.7 MHz | ||
| Continuos Use Temp | -40 to 160℃ | ||
| Dielectric Breakdown Voltage | >5500 VAC | ||
| Thermal conductivity | 4.0W/mK | ||
| Volume Resistivity | 1.0*1012 Ohm-cm | ||
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
FAQ
Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
Q: How much are the pads?
A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
