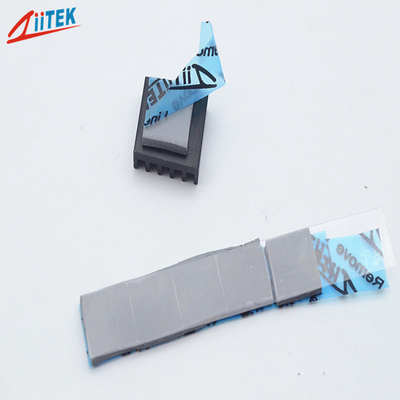

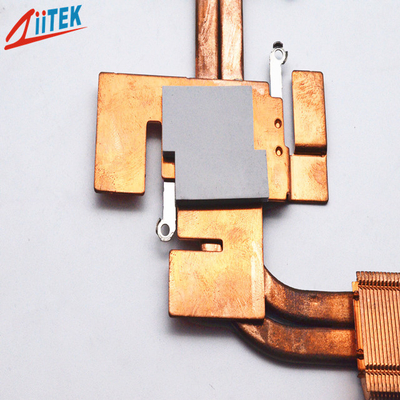

Ceramic Filled Silicone Elastomer heat sink thermal pad For Monitoring Power Box

Ceramic Filled Silicone Elastomer heat sink thermal pad For Monitoring Power Box

Ceramic Filled Silicone Elastomer heat sink thermal pad For Monitoring Power Box
video
Ceramic Filled Silicone Elastomer heat sink thermal pad For Monitoring Power Box
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF1120N-40-10F thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Application: LED Ceilinglamp Color: Gray
Keyword: Thermal Gap Pad Dielectric Breakdown Voltage: >5500 VAC
Part Number: TIF1120N-40-10F Name: Ceramic Filled Silicone Elastomer Thermal Pad For Monitoring The Power Box
High Light:

Ceramic Filled heat sink thermal pad

,

Silicone Elastomer heat sink thermal pad

,

Monitoring Power Box heat sink pad

Ceramic Filled Silicone Elastomer Thermal Pad for Monitoring the Power Box



Company Profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.


TIF100N-40-10F-Specification-sheet.pdf



Ziitek TIF1120N-40-10F​ is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.




<Good thermal conductive: 4.0 W/mK
<Thickness: 3.0mmT
<Hardness:55±5 Shore 00
<Colour: gray

<Available in varies thicknesses
<Broad range of hardnesses available
<Moldability for complex parts




Applications

<LED Power Supply
<LED Controller
<LED Ceilinglamp
<Monitoring the Power Box
<AD-DC Power Adapters
<Rainproof LED Power



Typical Properties of TIF1120N-40-10F

Product Name TIF1120N-40-10F Series
Colour Gray
Construction & Compostion Ceramic filled silicone elastomer
Specific gravity

2.1 g/cm^3

Thickness 3.0mmT
Hardness 55±5 Shore 00
Dielectric constant@1MHz 4.7 MHz
Continuos Use Temp -40 to 160℃
Dielectric Breakdown Voltage >5500 VAC
Thermal conductivity 4.0W/mK
Volume Resistivity 1.0*1012 Ohm-cm



Packaging Details & Lead time

The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated





Ceramic Filled Silicone Elastomer heat sink thermal pad For Monitoring Power Box 0




Independent R&D team

Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online



Ceramic Filled Silicone Elastomer heat sink thermal pad For Monitoring Power Box 1

FAQ

Q:How can we get detailed price list?
A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.
Q: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
