| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF1180N-40-10F thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Thickness: | 4.5mmT | Part Number: | TIF1180N-40-10F |
|---|---|---|---|
| Keyword: | Thermal Gap Pad | Dielectric Breakdown Voltage: | >5500 VAC |
| Name: | 4.0 W/mK Moldability For Complex Parts Thermal Pad For RDRAM Memory Modules | Application: | Telecommunication Hardware |
| High Light: | 4.0 W/MK heat sink thermal pad,4.5mm heat sink thermal pad,RDRAM Memory Modules heat sink pad |
||
4.0 W/mK Moldability for Complex Parts Thermal Pad for RDRAM Memory Modules
Company Profile
With professional R&D capabilities and over 17 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.
TIF100N-40-10F-Specification-sheet.pdf

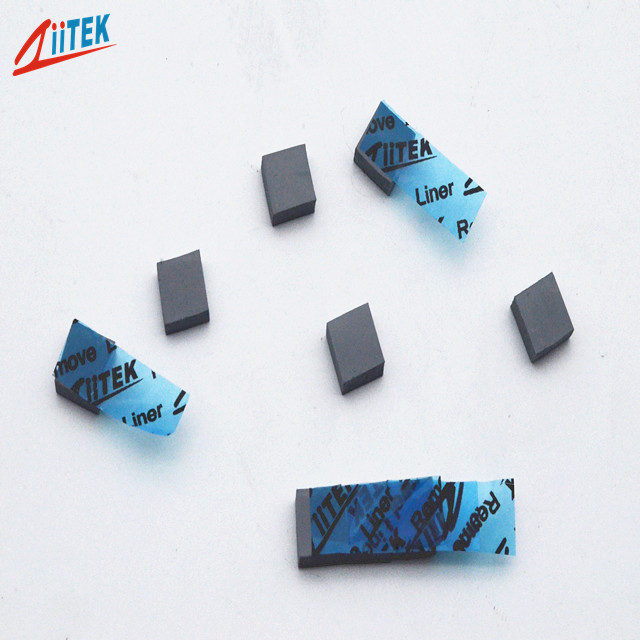

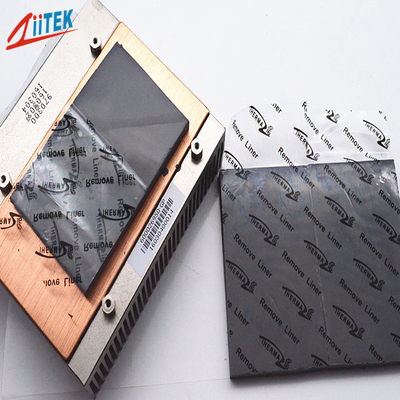

Ziitek TIF1180N-40-10F thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.
<Good thermal conductive
<Moldability for complex parts
<Soft and compressible for low stress applications
<cooling components to the chassis of frame
<High speed mass storage drives
<Heat Sinking Housing at LED-lit BLU in LCD
<LED TV and LED-lit lamps
<RDRAM memory modules
<Micro heat pipe thermal solutions
|
Typical Properties of TIF1180N-40-10F
|
|||
| Product Name | TIF1180N-40-10F Series | ||
| Colour | Gray | ||
| Construction & Compostion | Ceramic filled silicone elastomer | ||
| Specific gravity |
2.1 g/cm^3 |
||
| Thickness | 4.5mmT | ||
| Hardness | 55±5 Shore 00 | ||
| Dielectric constant@1MHz | 4.7 MHz | ||
| Continuos Use Temp | -40 to 160℃ | ||
| Dielectric Breakdown Voltage | >5500 VAC | ||
| Thermal conductivity | 4.0W/mK | ||
| Volume Resistivity | 1.0*1012 Ohm-cm | ||
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
