| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF140N-50-10F thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Thickness: | 1.0mmT | Application: | Monitoring The Power Box |
|---|---|---|---|
| Construction & Compostion: | Ceramic Filled Silicone Elastomer | Name: | 1.0mmT Easy Release Construction Thermal Pad For AD-DC Power Adapters |
| Thermal Conductive: | 5.0W/mk | Keyword: | Thermal Gap Pad |
| High Light: | Easy Release Construction 1mm thermal pad,AD DC Power Adapters 1mm thermal pad,1mm heat sink pad |
||

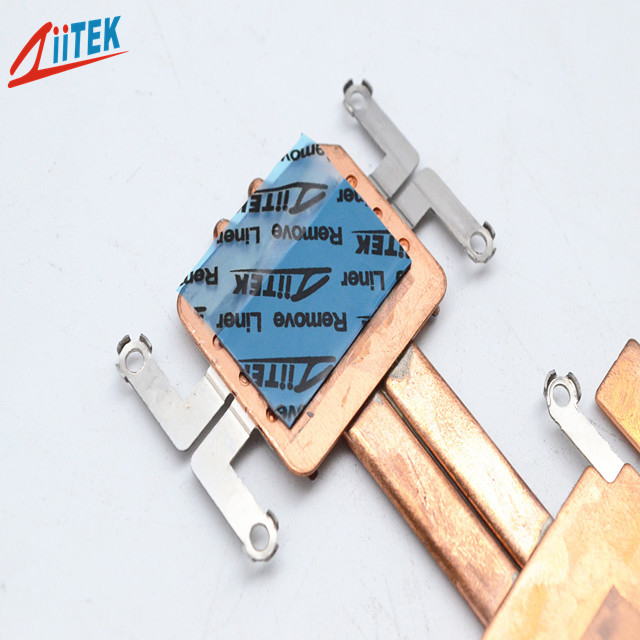

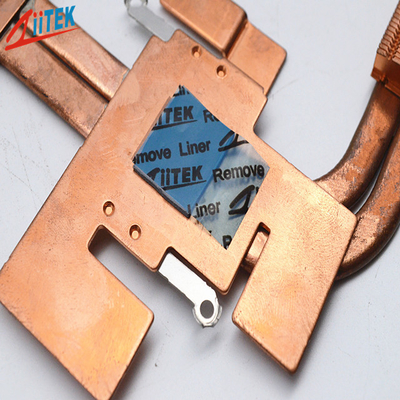

1.0mmT Easy Release Construction Thermal Pad for AD-DC Power Adapters
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
TIF100N-50-10F-Specification-sheet.pdf
Ziitek TIF140N-50-10F is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.
<Easy release construction
<Electrically isolating
<High durability
<LED Power Supply
<LED Controller
<LED Ceilinglamp
<Monitoring the Power Box
<AD-DC Power Adapters
<Rainproof LED Power
|
Typical Properties of TIF140N-50-10F
|
|||
| Product Name | TIF140N-50-10F Series | ||
| Colour | Gray | ||
| Construction & Compostion | Ceramic filled silicone elastomer | ||
| Specific gravity |
2.1 g/cm^3 |
||
| Thickness | 1.0mmT | ||
| Hardness | 55±5 Shore 00 | ||
| Dielectric constant@1MHz | 4.7 MHz | ||
| Continuos Use Temp | -40 to 160℃ | ||
| Dielectric Breakdown Voltage | >5500 VAC | ||
| Thermal conductivity | 5.0W/mK | ||
| Flame Rating | 94-V0 | ||
Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
FAQ
Q:How can we get detailed price list?
A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.
Q: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
