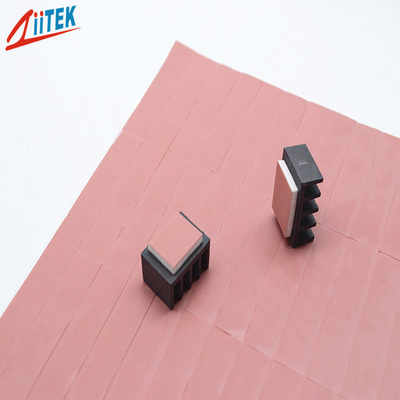

2.0W/mK Pink / White Electrically Isolating Silicone Pads for LED TV

2.0W/mK Pink / White Electrically Isolating Silicone Pads for LED TV

2.0W/mK Pink / White Electrically Isolating Silicone Pads for LED TV
video
2.0W/mK Pink / White Electrically Isolating Silicone Pads for LED TV
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF220-20-02ES thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Thickness: 0.5mmT Colour: Pink/White
Hardness: 10 Shore 00 Name: 2.0W/mK Pink/White Electrically Isolating Silicone Pads For LED TV

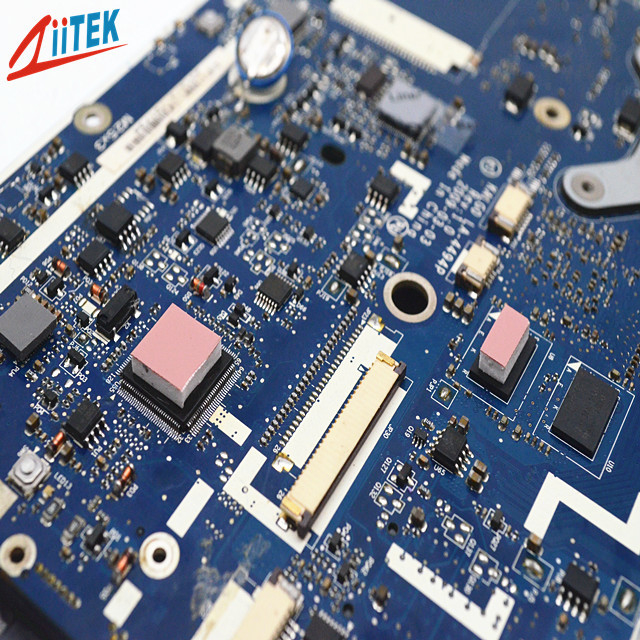

Keyword: Thermal Gap Pad Application: Mainboard/mother Board
High Light:

Electrically Isolating Silicone Pads

,

LED TV Silicone Pads

,

2.0W/mK Heat Sink Thermal Pad

2.0W/mK Pink/White Electrically Isolating Silicone Pads for LED TV



Company Profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.



TIF200-20-02ES-Series-Datasheet.pdf



Ziitek TIF220-20-02ES is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.




<Good thermal conductive: 2.0 W/mK
<Thickness: 0.5mmT
<Hardness:10 Shore 00
<Colour: Pink/White

<Easy release construction
<Electrically isolating
<High durability













Applications

<cooling components to the chassis of frame

<High speed mass storage drives

<Heat Sinking Housing at LED-lit BLU in LCD

<LED TV and LED-lit lamps

<RDRAM memory modules

<Micro heat pipe thermal solutions






Typical Properties of TIF220-20-02ES

Product Name TIF220-20-02ES Series
Colour Pink/White
Construction & Compostion Ceramic filled silicone elastomer
Specific gravity

2.8 g/cm^3

Thickness 0.5mmT
Hardness 10 Shore 00
Dielectric constant@1MHz 5.0 MHz
Continuos Use Temp -40 to 160℃
Dielectric Breakdown Voltage >5000 VAC
Thermal conductivity 2.0W/mK
Flame Rating 94-V0




Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)



Consult the factory to alternate thickness.





2.0W/mK Pink / White Electrically Isolating Silicone Pads for LED TV 0






Ziitek Culture



Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.



2.0W/mK Pink / White Electrically Isolating Silicone Pads for LED TV 1

FAQ

Q: Do you offer free samples ?

A: Yes, we are willing to offer free sample.

Q: What is your terms of payment ?

A: Payment<=2000USD, T/T in advance. Paying in time and faithful for several months, we can apply other payment term for you, pay together in every month or 30 days.
