| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF240-20-02ES thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Keyword: | Thermal Gap Pad | Dielectric Constant@1MHz: | 5.0 MHz |
|---|---|---|---|
| Hardness: | 10 Shore 00 | Colour: | Pink/White |
| Thickness: | 1.0mmT | Name: | 5.0 MHz Soft And Compressible For Low Stress Applications Silicone Pads For LED-lit Lamps |
| High Light: | 5.0 MHz Silicone Pads,LED Lamps Silicone Pads,LED Heat Sink Thermal Pad |
||

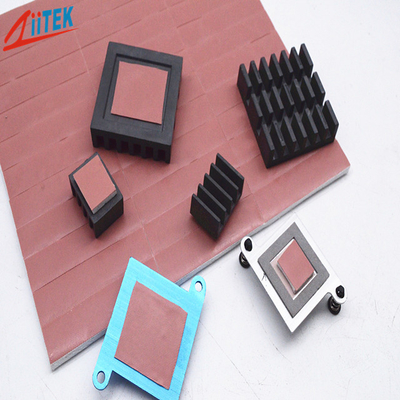

5.0 MHz Soft and Compressible for Low Stress Applications Silicone Pads for LED-lit Lamps
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
TIF200-20-02ES-Series-Datasheet.pdf
Ziitek TIF240-20-02ES is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF240-20-02ES is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
<Good thermal conductive
<Moldability for complex parts
<Soft and compressible for low stress applications
<cooling components to the chassis of frame
<High speed mass storage drives
<Heat Sinking Housing at LED-lit BLU in LCD
<LED TV and LED-lit lamps
<RDRAM memory modules

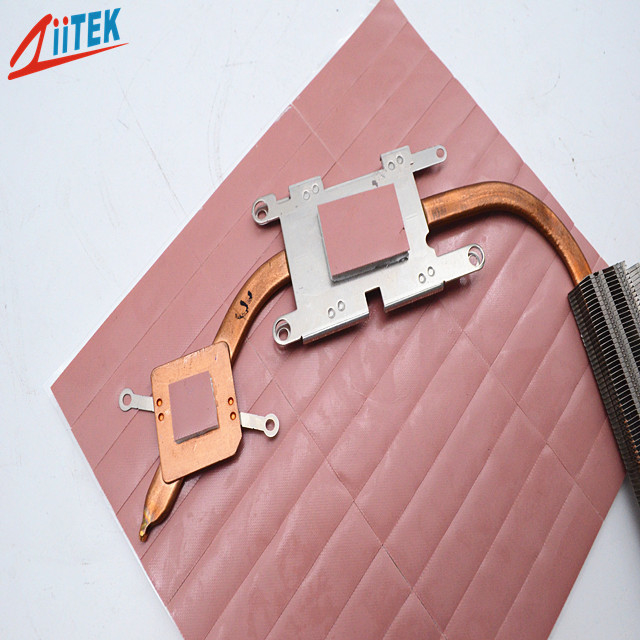

<Micro heat pipe thermal solutions
|
Typical Properties of TIF240-20-02ES
|
|||
| Product Name | TIF240-20-02ES Series | ||
| Colour | Pink/White | ||
| Construction & Compostion | Ceramic filled silicone elastomer | ||
| Specific gravity |
2.8 g/cm^3 |
||
| Thickness | 1.0mmT | ||
| Hardness | 10 Shore 00 | ||
| Dielectric constant@1MHz | 5.0 MHz | ||
| Continuos Use Temp | -40 to 160℃ | ||
| Dielectric Breakdown Voltage | >5000 VAC | ||
| Thermal conductivity | 2.0W/mK | ||
| Flame Rating | 94-V0 | ||
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
