6.0 W/MK Moldability For Complex Parts Thermal Pad For LED Controller

6.0 W/MK Moldability For Complex Parts Thermal Pad For LED Controller

6.0 W/MK Moldability For Complex Parts Thermal Pad For LED Controller
video
6.0 W/MK Moldability For Complex Parts Thermal Pad For LED Controller
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF720M thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Thermal Conductive: 6.0 W/mK Flame Rating: 94-V0
Name: 6.0 W/mK Moldability For Complex Parts Thermal Pad For LED Controller Dielectric Breakdown Voltage: >5500 VAC
Keyword: Thermal Gap Pad Application: Monitoring The Power Box
High Light:

LED Controller Thermal Pad

,

6.0 W/MK Thermal Pad

,

Heat Sink Thermal Gap Pad

6.0 W/mK Moldability for Complex Parts Thermal Pad for LED Controller



Company Profile

With professional R&D capabilities and over 18 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.



TIF700M-Series-Datasheet.pdf

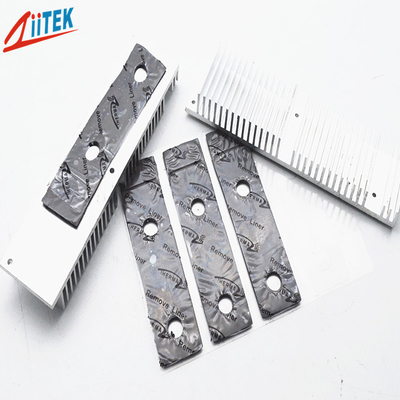

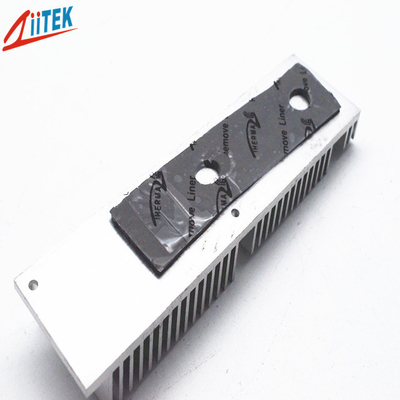

Ziitek TIF720M is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.




<Good thermal conductive: 6.0 W/mK
<Thickness: 0.5mmT
<Hardness:50 Shore 00
<Colour: Grey

<Moldability for complex parts
<Soft and compressible for low stress applications
<Naturally tacky needing no further adhesive coating








Applications

<LED Power Supply

<LED Controller

<LED Ceilinglamp

<Monitoring the Power Box

<AD-DC Power Adapters

<Rainproof LED Power






Typical Properties of TIF720M

Product Name TIF720MSeries
Colour Grey
Construction & Compostion Ceramic filled silicone elastomer
Specific gravity

3.25 g/cc

Thickness 0.5mmT
Hardness 50 Shore 00
Dielectric constant@1MHz 4.2 MHz
Continuos Use Temp -40 to 160℃
Dielectric Breakdown Voltage >5500 VAC
Thermal conductivity 6.0W/mK
Flame Rating 94-V0




Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL





6.0 W/MK Moldability For Complex Parts Thermal Pad For LED Controller 0






Our services



Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples



After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.





6.0 W/MK Moldability For Complex Parts Thermal Pad For LED Controller 1

FAQ

Q:How can we get detailed price list?

A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.

Q: What kind of packaging you offer?

A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
