Place of Origin: | China |
Brand Name: | Ziitek |
Certification: | UL |
Model Number: | TIF760M thermal pad |
Minimum Order Quantity: | 1000 pcs |
---|---|
Price: | 0.1-10 USD/PCS |
Packaging Details: | 25*24*13cm canton |
Delivery Time: | 3-8 work days |
Payment Terms: | T/T |
Supply Ability: | 100000pcs/month |
Continuos Use Temp: | -40 To 160℃ | Hardness: | 50 Shore 00 |
---|---|---|---|
Flame Rating: | 94-V0 | Name: | Dielectric Constant 4.2 MHz UL Recognized Thermal Pad For Display Card |
Keyword: | Thermal Gap Pad | Dielectric Breakdown Voltage: | >5500 VAC |
Highlight: | UL Recognized Heatsink Thermal Pad,4.2 MHz Thermal Transfer Pad,Dielectric Constant Heatsink Thermal Pad |

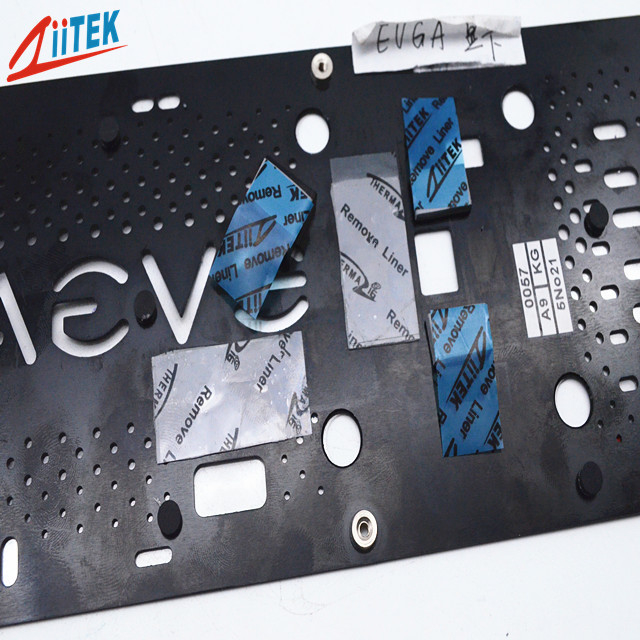

Dielectric constant 4.2 MHz UL Recognized Thermal Pad for Display Card
Company Profile
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.
TIF700M-Series-Datasheet.pdf
Ziitek TIF760M is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.
<RoHS compliant
<UL recognized
<Easy release construction
<Automotive engine control units
<Telecommunication hardware
<Handheld portable electronics
<Semiconductor automated test equipment (ATE)
<CPU
<display card
Typical Properties of TIF760M | |||
Product Name | TIF760MSeries | ||
Colour | Grey | ||
Construction & Compostion | Ceramic filled silicone elastomer | ||
Specific gravity | 3.25 g/cc | ||
Thickness | 1.5mmT | ||
Hardness | 50 Shore 00 | ||
Dielectric constant@1MHz | 4.2 MHz | ||
Continuos Use Temp | -40 to 160℃ | ||
Dielectric Breakdown Voltage | >5500 VAC | ||
Thermal conductivity | 6.0W/mK | ||
Flame Rating | 94-V0 |
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
FAQ
Q: Do you offer free samples ?
A: Yes, we are willing to offer free sample.
Q: What is your terms of payment ?
A: Payment<=2000USD, T/T in advance. Paying in time and faithful for several months, we can apply other payment term for you, pay together in every month or 30 days.
