| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF7160M thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Part Number: | TIF7160M | Dielectric Breakdown Voltage: | >5500 VAC |
|---|---|---|---|
| Specific Gravity: | 3.25 G/cc | Flame Rating: | 94-V0 |
| Keyword: | Thermal Gap Pad | Name: | 4.0mmT Electrically Isolating Heat Sink Pad For LED Flesible Strip |
| High Light: | 4.0mm Heat Sink Pad,3.25 g/cc Thermal Gap Pad,SMD LED Heat Sink Pad |
||

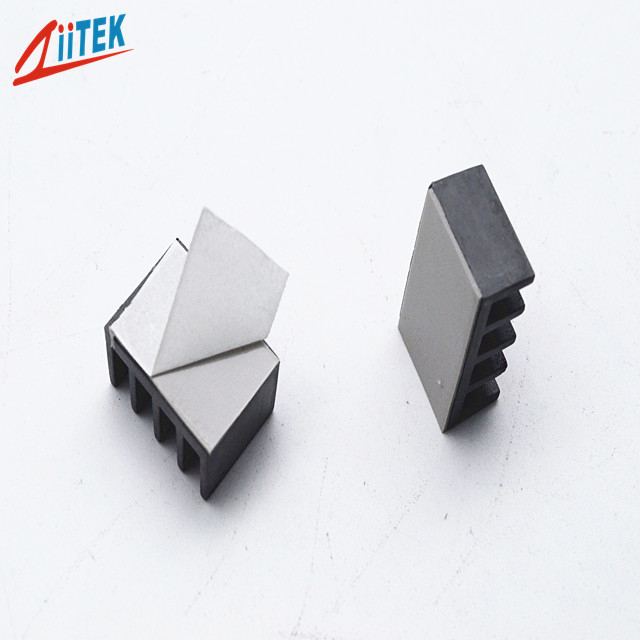

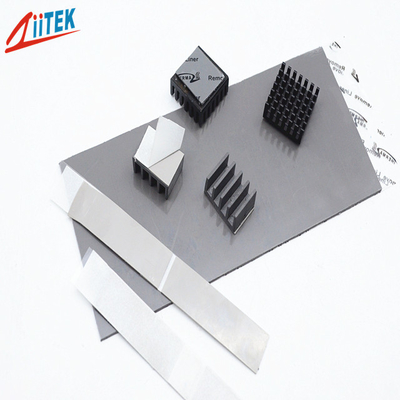

4.0mmT Electrically Isolating Heat Sink Pad for LED Flesible Strip
Company Profile
With professional R&D capabilities and over 18 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.
TIF700M-Series-Datasheet.pdf
Ziitek TIF7160M is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.
< Electrically isolating
< High durability
< Good thermal conductive
< Waterproof LED Power
< SMD LED module
< LED Flesible strip, LED bar
< LED PanelLight
< LED floor light
< Routers
|
Typical Properties of TIF7160M
|
|||
| Product Name | TIF7160MSeries | ||
| Colour | Grey | ||
| Construction & Compostion | Ceramic filled silicone elastomer | ||
| Specific gravity |
3.25 g/cc |
||
| Thickness | 4.0mmT | ||
| Hardness | 50 Shore 00 | ||
| Dielectric constant@1MHz | 4.2 MHz | ||
| Continuos Use Temp | -40 to 160℃ | ||
| Dielectric Breakdown Voltage | >5500 VAC | ||
| Thermal conductivity | 6.0W/mK | ||
| Flame Rating | 94-V0 | ||
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online .
FAQ
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
