| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF7180M thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Material: | Silicone | Application: | Handheld Portable Electronics |
|---|---|---|---|
| Name: | Naturally Tacky Needing No Further Adhesive Coating TIF7180M Conductive Pads For CPU | Specific Gravity: | 3.25 G/cc |
| Part Number: | TIF7180M | Keyword: | Thermal Gap Pad |
| High Light: | CPU Conductive Pads,Handheld Conductive Pads,3.25 G/cc Heatsink Thermal Pad |
||

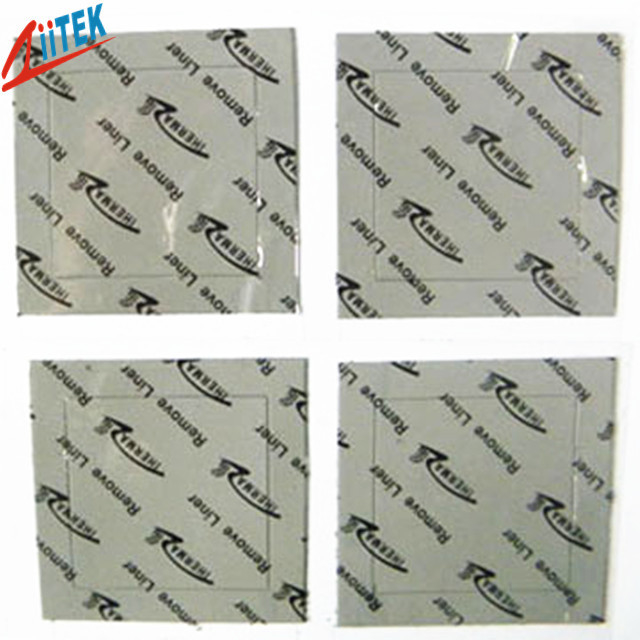

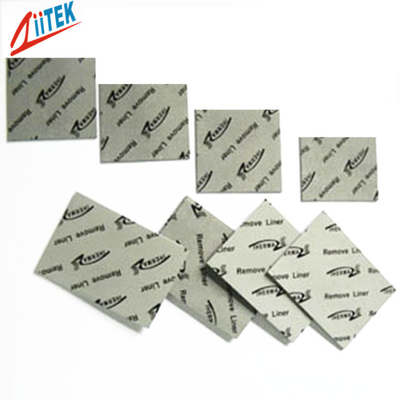

Naturally Tacky Needing No Further Adhesive Coating TIF7180M Conductive Pads for CPU
Company Profile
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.
TIF700M-Series-Datasheet.pdf
Ziitek TIF7180M is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF7180M is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
< Moldability for complex parts
< Soft and compressible for low stress applications
< Naturally tacky needing no further adhesive coating
<Automotive engine control units
<Telecommunication hardware
<Handheld portable electronics
<Semiconductor automated test equipment (ATE)
<CPU
<display card
|
Typical Properties of TIF7180M
|
|||
| Product Name | TIF7180MSeries | ||
| Colour | Grey | ||
| Construction & Compostion | Ceramic filled silicone elastomer | ||
| Specific gravity |
3.25 g/cc |
||
| Thickness | 4.5mmT | ||
| Hardness | 50 Shore 00 | ||
| Dielectric constant@1MHz | 4.2 MHz | ||
| Continuos Use Temp | -40 to 160℃ | ||
| Dielectric Breakdown Voltage | >5500 VAC | ||
| Thermal conductivity | 6.0W/mK | ||
| Flame Rating | 94-V0 | ||
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
