| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF760HM thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Keyword: | Thermal Gap Pad | Name: | 45±5 Shore 00 Soft And Compressible Conductive Pads For LED Power Supply |
|---|---|---|---|
| Application: | Heat Pipe Thermal Solutions | Part Number: | TIF760HM |
| Material: | Silicone | Specific Gravity: | 3.3 G/cm^3 |
| High Light: | 45 Shore 00 Conductive Pads,Soft Compressible Conductive Pads,3.3g/cm3 Heat Sink Thermal Pad |
||
45±5 Shore 00 Soft and Compressible Conductive Pads for LED Power Supply
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

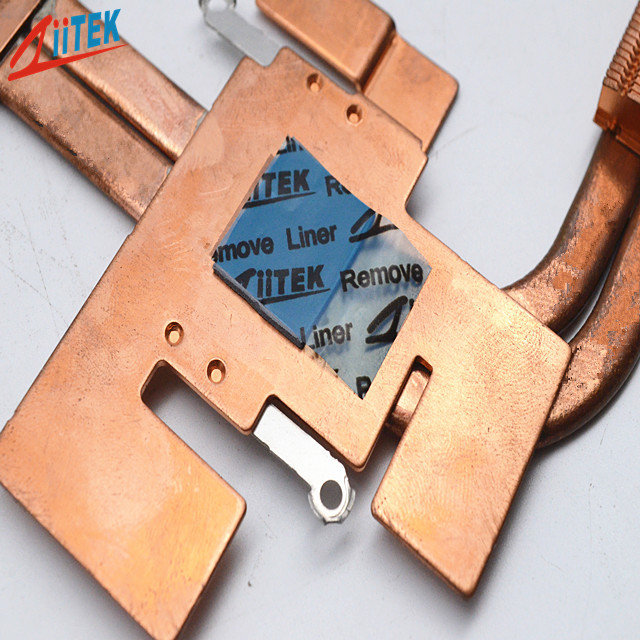

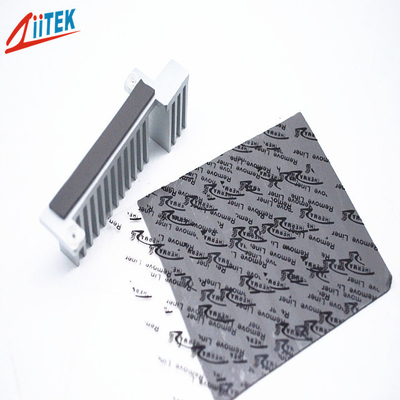

Ziitek TIF760HM is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.
< Moldability for complex parts
< Soft and compressible for low stress applications
< Naturally tacky needing no further adhesive coating
< LED Power Supply
< LED Controller
< LED Ceilinglamp
< Monitoring the Power Box
< AD-DC Power Adapters
< Rainproof LED Power
|
Typical Properties of TIF760HM
|
|||
| Product Name | TIF760HMSeries | ||
| Colour | Grey | ||
| Construction & Compostion | Ceramic filled silicone elastomer | ||
| Specific gravity |
3.3 g/cm3 |
||
| Thickness | 1.5mmT | ||
| Hardness | 45±5 Shore 00 | ||
| Dielectric constant@1MHz | 4.5 MHz | ||
| Continuos Use Temp | -40 to 160℃ | ||
| Dielectric Breakdown Voltage | >5500 VAC | ||
| Thermal conductivity | 6.0W/mK | ||
| Flame Rating | 94-V0 | ||
Certifications:
ISO9001:2015
ISO14001: 2004
IATF16949:2016
IECQ QC 080000:2017
UL
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
FAQ
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge
