| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF7100HM thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Keyword: | Thermal Gap Pad | Name: | 6.0W/mK RoHS Compliant TIF7100HM Silicone Pads For Automotive Engine Control Units |
|---|---|---|---|
| Dielectric Breakdown Voltage: | >5500 VAC | Specific Gravity: | 3.3 G/cm^3 |
| Thickness: | 2.5mmT | Part Number: | TIF7100HM |
| High Light: | TIF7100HM Silicone Pads,6.0W/mK Silicone Pads,Automotive Engine Thermal Pad |
||
6.0W/mK RoHS Compliant TIF7100HM Silicone Pads for Automotive Engine Control Units
Company Profile
With professional R&D capabilities and over 17 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

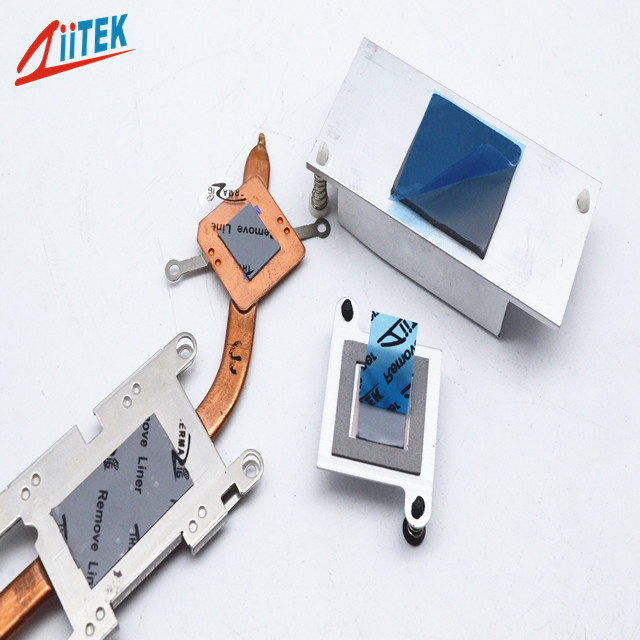

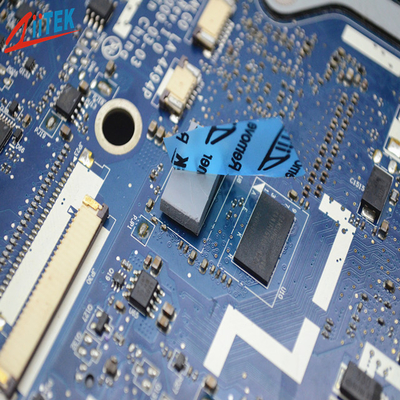

Ziitek TIF7100HM is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.
< Moldability for complex parts
<Outstanding thermal performance
<High tack surface reduces contact resistance
<Automotive engine control units
<Telecommunication hardware
<Handheld portable electronics
<Semiconductor automated test equipment (ATE)
<CPU
<display card
|
Typical Properties of TIF7100HM
|
|||
| Product Name | TIF7100HM Series | ||
| Colour | Grey | ||
| Construction & Compostion | Ceramic filled silicone elastomer | ||
| Specific gravity |
3.3 g/cm3 |
||
| Thickness | 2.5mmT | ||
| Hardness | 45±5 Shore 00 | ||
| Dielectric constant@1MHz | 4.5 MHz | ||
| Continuos Use Temp | -40 to 160℃ | ||
| Dielectric Breakdown Voltage | >5500 VAC | ||
| Thermal conductivity | 6.0W/mK | ||
| Flame Rating | 94-V0 | ||
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
