Name: Good Performance China Factory Silicone Thermal Pad For CPU
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF720Z thermal pad
Price: 4.10 USD
Availability: InStock

Home Products Heat Sink Thermal Pad

Good Performance China Factory Silicone Thermal Pad For CPU

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL
Model Number:	TIF720Z thermal pad

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	0.1-10 USD/PCS
Packaging Details:	252413cm canton
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Name:	Good Performance China Factory Silicone Thermal Pad For CPU	Specific Gravity:	3.45 G/cm^3
Keyword:	Silicone Thermal Pad	Part Number:	TIF720Z
Thickness:	0.5mmT	Hardness:	55 Shore 00
Highlight:	0.5mm Thickness Silicone Thermal Pad , CPU Silicone Thermal Pad , 3.45g/cm3 Heat Sink Thermal Pad

Good Performance China Factory Silicone Thermal Pad For CPU

Company Profile

Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.

TIF700Z-Series-Datasheet(E)-REV01.pdf

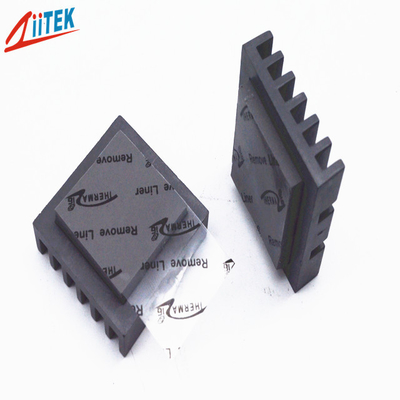

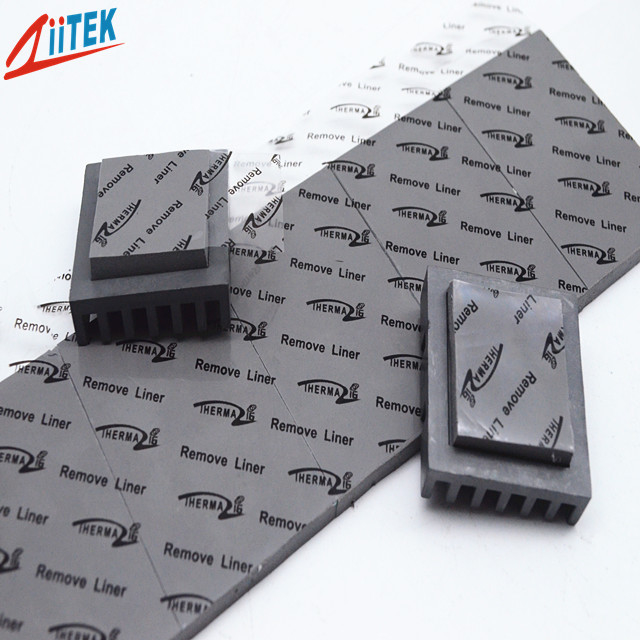

Ziitek TIF720Z is an extremely soft gap filling material rated at a thermal conductivity of 7.0 W/m-K. It is specially formulated for high performance applications requiring low assembly stress. The material offers exceptional thermal performance at low pressures due to the unique filler package and ultra low modulus resin formulation. TIF720Z is highly conformal to rough or irregular surfaces, allowing excellent wet-out at the interface. Protective liners are supplied on both sides allowing for ease of use.

< Good thermal conductive: 6.0 W/mK

< Thickness: 0.5mmT

< Hardness: 30 Shore 00

< Colour: Grey

< Moldability for complex parts
< Outstanding thermal performance
< High tack surface reduces contact resistance

Applications

> SMD LED module
> LED Flesible strip, LED bar
> LED PanelLight
> LED floor light
> Routers
> CPU

Typical Properties of TIFTIF720Z
Product Name	TIF720Z Series
Colour	Grey
Construction & Compostion	Ceramic filled silicone elastomer
Specific gravity	3.45 g/cc
Thickness	0.5mmT
Hardness	55 Shore 00
Dielectric constant@1MHz	4.5 MHz
Continuos Use Temp	-40 to 200℃
Dielectric Breakdown Voltage	>5500 VAC
Thermal conductivity	7.0W/mK
Flame Rating	94-V0

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

Good Performance China Factory Silicone Thermal Pad For CPU 1

FAQ

Q: How much are the pads?

A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price

Q:Do big buyers have promotional prices?

A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.
