Place of Origin: | China |
Brand Name: | Ziitek |
Certification: | UL |
Model Number: | TIF760HP thermal pad |
Minimum Order Quantity: | 1000 pcs |
---|---|
Price: | 0.1-10 USD/PCS |
Packaging Details: | 25*24*13cm canton |
Delivery Time: | 3-8 work days |
Payment Terms: | T/T |
Supply Ability: | 100000pcs/month |
Name: | Wholesale Heat Spreader Transfer Insulated Silicone Thermal Conductive Pads For LED | Thickness: | 1.5mmT |
---|---|---|---|
Specific Gravity: | 3.3 G/cm^3 | Hardness: | 45±5 |
Part Number: | TIF760HP | Keyword: | Thermal Conductive Pads |
Highlight: | Insulated Silicone Thermal Conductive Pads,LED Thermal Conductive Pads,Wholesale Thermal Conductive Pads |

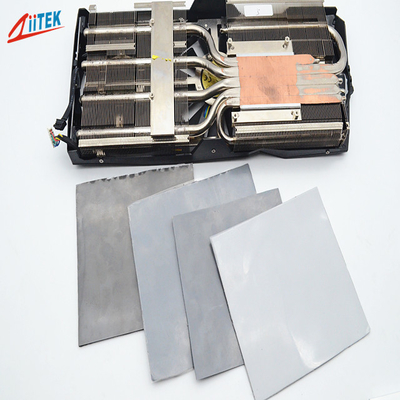

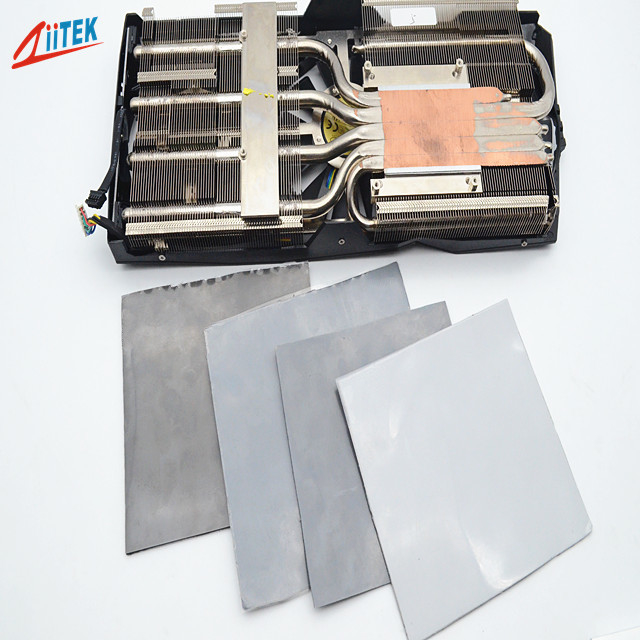

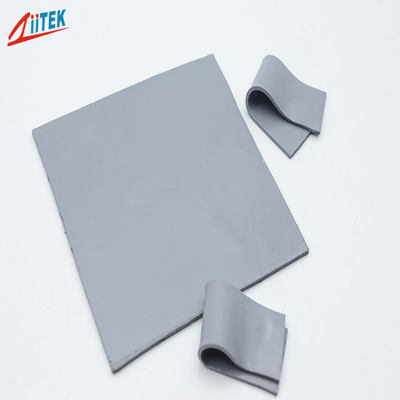

Wholesale Heat Spreader Transfer Insulated Silicone Thermal Conductive Pads for LED
Company Profile
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.
Ziitek TIF760HP is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF760HP is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
< Moldability for complex parts
< Outstanding thermal performance
< High tack surface reduces contact resistance
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
Typical Properties of TIF760HP
|
|||
Product Name | TIF760HP Series | ||
Colour | grey | ||
Construction & Compostion | Ceramic filled silicone elastomer | ||
Specific gravity |
3.3 g/cc |
||
Thickness | 1.5mmT | ||
Hardness | 45±5 | ||
Dielectric constant@1MHz | 4.5 MHz | ||
Continuos Use Temp | -40 to 160℃ | ||
Dielectric Breakdown Voltage | >5500 VAC | ||
Thermal conductivity | 7.5W/mK | ||
Flame Rating | 94-V0 |
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
