| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF7180HP thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Name: | Thermal Insulation Pads 7.5W/mk High Conductive Silicon Thermal Pad For Heat Sink Electronics | Keyword: | Thermal Insulation Pads |
|---|---|---|---|
| Specific Gravity: | 3.3 G/cm^3 | Hardness: | 45±5 |
| Thickness: | 4.5mmT | Part Number: | TIF7180HP |
| High Light: | Heat Sink Electronics thermal Insulation Pads,High Conductive thermal Insulation Pads,7.5W/mk thermal Insulation Pads |
||

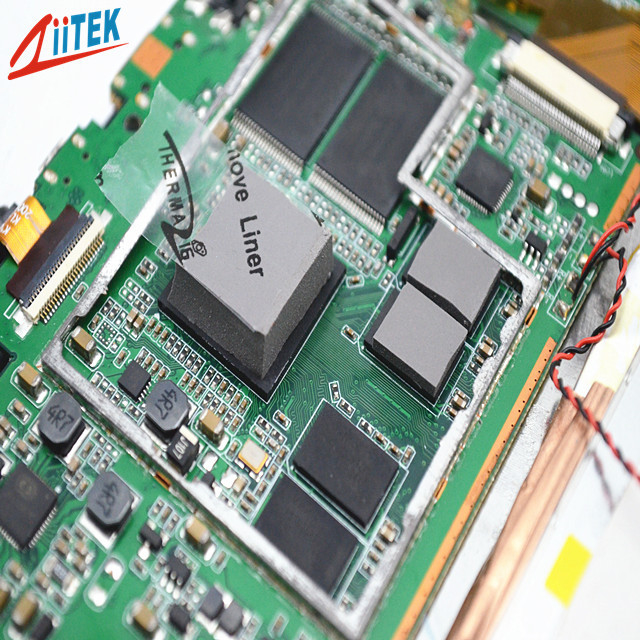

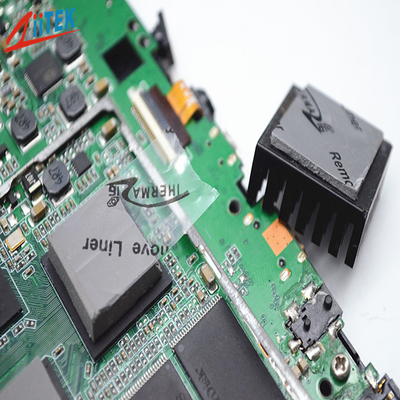

Thermal Insulation Pads 7.5W/mk High Conductive Silicon thermal pad for Heat Sink Electronics
Company Profile
With professional R&D capabilities and over 18 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.
Ziitek TIF7180HP is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF180HP is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
< RoHS compliant
< UL recognized
< Fiberglass reinforced for puncture, shear and tear resistance
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
|
Typical Properties of TIF7180HP
|
|||
| Product Name | TIF7180HP Series | ||
| Colour | gray | ||
| Construction & Compostion | Ceramic filled silicone elastomer | ||
| Specific gravity |
3.3 g/cc |
||
| Thickness | 4.5mmT | ||
| Hardness | 45±5 | ||
| Dielectric constant@1MHz | 4.5 MHz | ||
| Continuos Use Temp | -40 to 160℃ | ||
| Dielectric Breakdown Voltage | >5500 VAC | ||
| Thermal conductivity | 7.5W/mK | ||
| Flame Rating | 94-V0 | ||
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
