Flexible Thin Soft 0.5mm To 5mm Silicone Thermal Conductive Pad For EV Battery Pack

Flexible Thin Soft 0.5mm To 5mm Silicone Thermal Conductive Pad For EV Battery Pack

  • Flexible Thin Soft 0.5mm To 5mm Silicone Thermal Conductive Pad For EV Battery Pack
  • Flexible Thin Soft 0.5mm To 5mm Silicone Thermal Conductive Pad For EV Battery Pack
Flexible Thin Soft 0.5mm To 5mm Silicone Thermal Conductive Pad For EV Battery Pack
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF7120PUS thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Name: Flexible Thin Soft 0.5mm To 5mm Silicone Thermal Conductive Pad For EV Battery Pack Specific Gravity: 3.2 G/cm³
Hardness: 20 Thickness: 3.0 MmT
Part Number: TIF7120PUS Keyword: Thermal Conductive Pad
High Light:

5mm Silicone Thermal Conductive Pad

,

0.5mm Silicone Thermal Conductive Pad

,

EV Battery Silicone Thermal Conductive Pad

Flexible Thin Soft 0.5mm to 5mm Silicone Thermal Conductive Pad For EV Battery Pack



Company Profile



With professional R&D capabilities and over 18 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.



TIF700PUS-data sheet.pdf

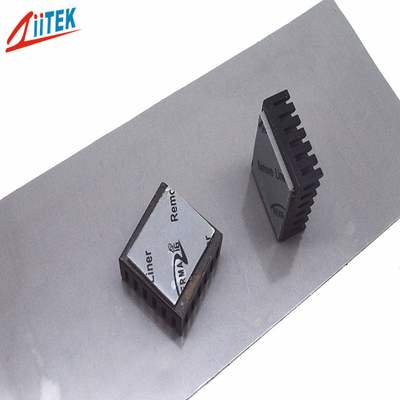

Flexible Thin Soft 0.5mm To 5mm Silicone Thermal Conductive Pad For EV Battery Pack 0





Ziitek TIF7120PUS thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.



< Good thermal 3.0mmT
< Hardness: 20
< Colour: gray

< Naturally tacky needing no further adhesive coating
< Available in varies thicknesses
< Broad range of hardnesses available







Applications


> IT infrastructure
> GPS navigation and other portable devices
> CD-Rom, DVD-Rom cooling
> LED Power Supply
> LED Controller
> LED Ceilinglamp








Typical Properties of TIF7120PUS

Product Name TIF7120PUS Series
Colour Gray
Construction & Compostion Ceramic filled silicone elastomer
Specific gravity

3.2 g/cc

Thickness 3.0mmT
Hardness(Shore 00) 20
Dielectric constant@1MHz 4.5 MHz
Continuos Use Temp -40 to 160℃
Dielectric Breakdown Voltage >6000 VAC
Thermal conductivity 7.5W/mK
Flame Rating 94-V0





Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)



Consult the factory to alternate thickness.

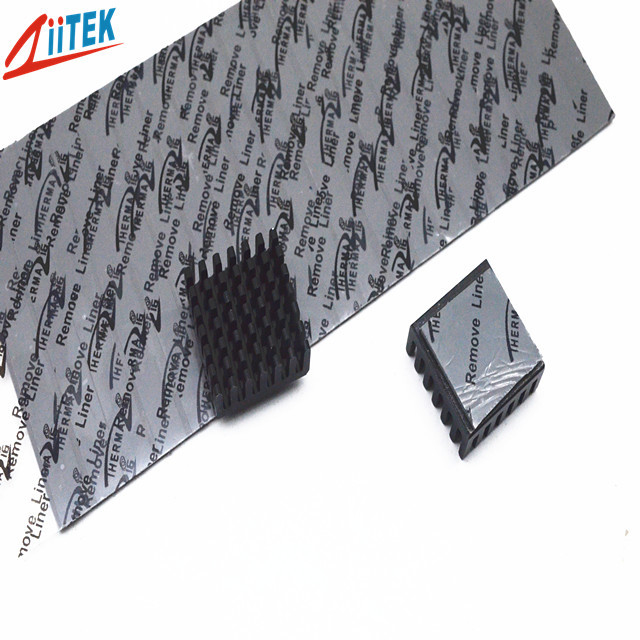

Flexible Thin Soft 0.5mm To 5mm Silicone Thermal Conductive Pad For EV Battery Pack 1





Ziitek Culture



Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.





FAQ



Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information.



Q: How much are the pads?

A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
