| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | RoHS |
| Model Number: | TIE280-25AB |
| Minimum Order Quantity: | 10kg |
|---|---|
| Price: | 1-100USD/kg |
| Packaging Details: | 1kg/can |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 10000kg/month |
| Material: | Epoxy Glue | Usage: | Bonding Electronics |
|---|---|---|---|
| Appearance Sured: | Dull Gray Solid | Continuous Use Temp: | -40 To 130℃ |
| Thermal Conductivity: | 2.5 W/mK | NAME: | Thermal Conductive Glue |
| Highlight: | Insulation Thermal Conductive Glue,Waterproof Thermal Conductive Glue,High Temperature Insulation Thermal Conductive Glue |
||
High Temperature And Waterproof Insulation Thermal Conductive Glue
TIETM280-25AB is a two compound, high thermal conductive, low temperature cured, long pot life,fire resistant epoxy encapsulant compound. lt is design for potting of capacitors and electrical devices.
Feature
> Good thermal conductive: 2.5W/mK
> Excellent insulation and smoothly sourface.
> Low shrinkage
> Low viscosity, expediting air releaseed.
> Excellent in solvents and water proof.
> Longer life time.
> Excellent thermal shock efficiecy andimpact resistance
Applications
> Automotive starters potting; General potting;
> Thermal detector potting
> Ferrite adhesion; TIP type LED; Good adhesion toaromatic polyester
> Relay sealant;Good adhesion to rubber, ceramics,PCB and plastics

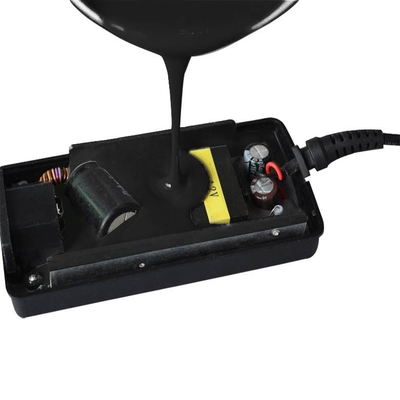

> Power transformers and coils; Potting capacitors;Potting of small electrical devices
> Adhesion to metal glass and plastic;LCD & substrates adhesion;
> Coating and sealant; Coil ; IGBTS;Transformer; Fire retardant
> Optical / medical component adhesive
|
Typical Properties of TIETM280-25AB |
||
| Chemical type | Epoxy | Test Method |
| Appearance uncured | Black Paste | Visual |
| Appearance cured | Dull Black Solid | Visual |
| Components | Two Component | ***** |
| Heat Capacity | 0.7 l/g-K | ASTM C351 |
| Key Substrates | Metals, ceramics | ***** |
| Hardness | 85 Shore D | ASTM 2240 |
| Continuous Use Temp | -40 to 130℃ | ***** |
| Tensile strength Al/Al @25°C | >4000psi | ***** |
| Thermal Conductivity | 2.5 W/m-K | ASTM D5470 |
Application Features:
TIE™280-25A
Color Black
Viscosity@25℃ 3,000 cPs
Shelf life @25℃° 12Months
TIE™280-25B
Color Black
Viscosity@25℃ 4,000 cPs
Shelf life @25℃° 12Months
TIE™280-25AB(Two Component Mix)
Viscosity(@25℃ )4,000 cPs
Operating time9(@ 25℃)45Minutes
Specific Gravity (@25℃) 2.1 g/cc
Shelf life( @25℃°) 12Months
Curing procedures:
Curing temperature Curing time
25℃° 3 Hours
70℃ 30Minutes
Package:
1KG A/B for each tank. 5KG A/B each. 10KG A/B each.
