| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL & RoHS |
| Model Number: | TIF100-40-11U |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 24*23*12cm cantons |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000000 pcs/month |
| Products Name: | High Temperature Thermal Conductive Silicone Pad Flame Retardant Silicone Rubber Thermal Insulating Gasket | Thermal Conductivity: | 4.0W/m-K |
|---|---|---|---|
| Outgassing(TML): | 0.35% | Fire Rating: | 94 V0 |
| Dielectric Breakdown Voltage: | >5500 VAC | Specific Gravity: | 3.15g/cc |
| Hardness: | 27 Shore 00 | Keywords: | Thermal Gap Pad |
| Application: | Mainboard/mother Board | ||
| Highlight: | High Temperature Silicone Thermal Pad,Flame Retardant Silicone Thermal Pad,Silicone Rubber Thermal Insulating Gasket |
||

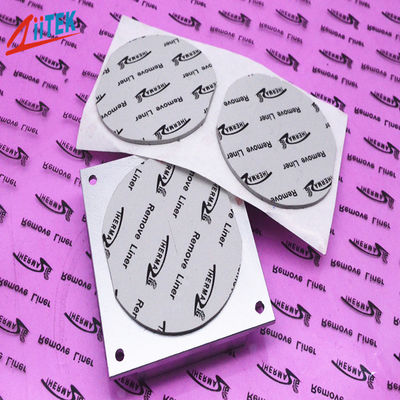

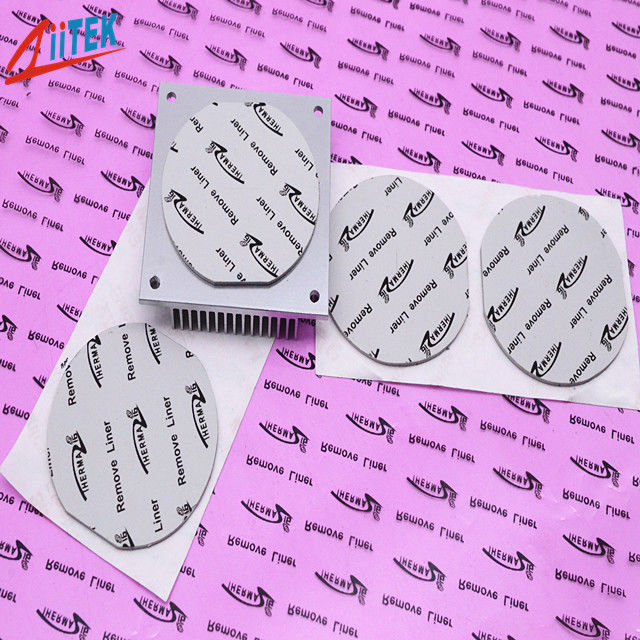

High Temperature Thermal Conductive Silicone Pad Flame Retardant Silicone Rubber Thermal Insulating Gasket
Company Profile
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.
TIF100-40-11US-Series-Datasheet.pdf
TIF™100-40-11U Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of
the heat-generating electronic components.
Features
> Good thermal conductivity: 4.0W/mK
> RoHS compliant
> UL recognized
> Naturally tacky needing no furtheradhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
Applications
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
| Typical Properties of TIF™100-40-11USeries | ||
| Color | Gray | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** |
| Specific gravity | 3.15g/cc | ASTM D297 |
| Thickness range | 0.020"(0.5mm)-0.200"(5.0mm) | ****** |
| Hardness | 27Shore 00 | ASTM 2240 |
| Outgasing (TML) | 0.35% | ASTM E595 |
| Continuos Use Temp | -40 to 160℃ | ****** |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 |
| Dielectric Constant | 4.0 MHz | ASTM D150 |
| Volume Resistivity(Ohm-cm) | 1.0X1012 | ASTM D257 |
| Fire rating | 94 V0 | UL E331100 |
| Thermal conductivity | 3.0 W/m-K | ASTM D5470 |
Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm) 0.050" (1.27mm)
0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm) 0.100" (2.54mm)
0.110" (2.79mm) 0.120" (3.05mm) 0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.
Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement:
TIF™100-40-11U series sheets type can add with fiberglass reinforced.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
