Factory Supply 3.0W/MK Thermal Silicone Pad For Medical Devices

Factory Supply 3.0W/MK Thermal Silicone Pad For Medical Devices

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL & RoHS
Model Number: TIF300 Series
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*13*12cm cartons
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 1000000 pcs/month
Contact Now
Detailed Product Description
Products Name: Factory Thermal Silicone Pad For Medical Devices Thickness Range: 0.5mm~5.0mm
Specific Gravity: 3.05g/cc Dielectric Breakdown Voltage: ≥5500 VAC
Thermal Conductivity: 3.0W/m-K Color: Ray
Materials: Ceramic Filled Silicone Elastomer Operating Temp: -45~200℃
Keywords: Silicone Thermal Pad
Highlight:

3.0W/MK Silicone Thermal Pad

,

Factory Supply Silicone Thermal Pad

,

Medical Devices Silicone Thermal Pad

Factory Thermal Silicone Pad for Medical Devices

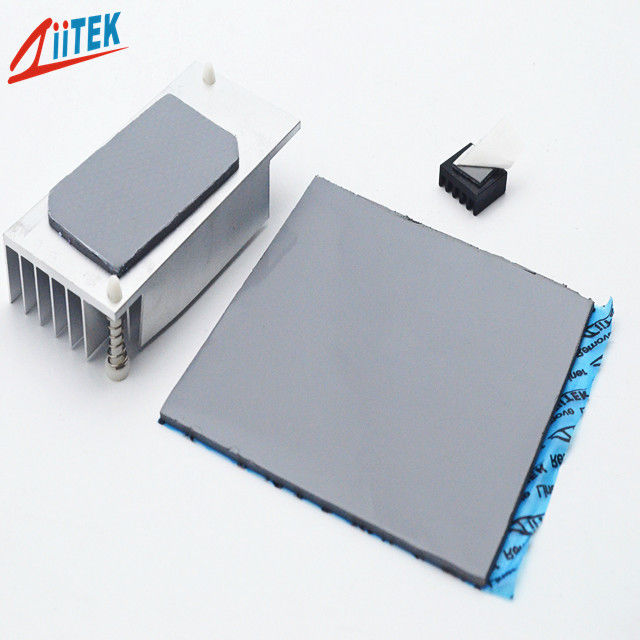

The TIF300 Series is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.

Factory Supply 3.0W/MK Thermal Silicone Pad For Medical Devices
Features
> Good thermal conductive: 3.0W/mK
> Available in varies thickness
> UL recognized
> Broad range of hardnesses available
> High tack surface reduces contact resistance

> Electrically isolating


Applications
> Rainproof LED Power
> Waterproof LED Power
> SMD LED module
> LED Flesible strip, LED bar
> LED Panel Light
> LED floor light
> Routers
> Medical Devices



Typical Properties of TIF™300 Series
Color Gray Visual
Construction &Compostion Ceramic filled silicone ***
Thinkness range 0.020"(0.50mm~0.200"(5.0mm) ASTM D374
Hardness 27±5 Shore 00 ASTM 2240
Specific Gravity 3.05 g/cc ASTM D297
Continuos Use Temp -40-160℃ ***
Dielectric BreakdownVoltage @ 1.0mm,AC(v) ≥5500 ASTM D149
Dielectric Constant @MHz 4.5
Volume Resistivity(Ohm-cm) ≥1.0X10" Ohm-meter ASTM C351
Thermal conductivity 3.0 W/m-K ASTM D412
Fire rating V-0 ASTM E595

Product Thicknesses:

0.020-inch to 0.200-inch (0.5mm to 5.0mm)



Product Sizes:

8"x 16"(203mm x406mm)

Individual die cut shapesand and custom thickness can be supplied.

Please contact us for confirming


Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.


Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.

Factory Supply 3.0W/MK Thermal Silicone Pad For Medical Devices

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Company Profile



With professional R&D capabilities and over 19 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.



Our services



Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples



After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.
