Name: Soft Thermal Pad Electrically Insulating Pad With Exceptional Thermal Conductivity For Home Appliance Industry
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF100-15-14S
Price: 4.10 USD
Availability: InStock

Home Products Silicone Thermal Pad

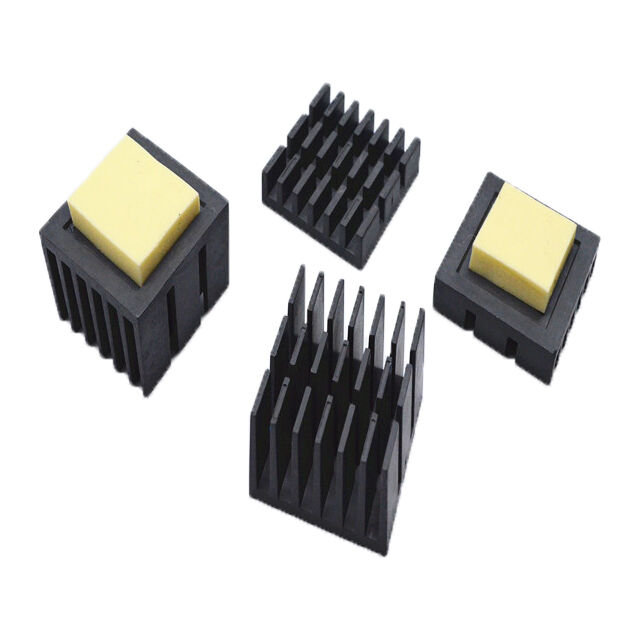

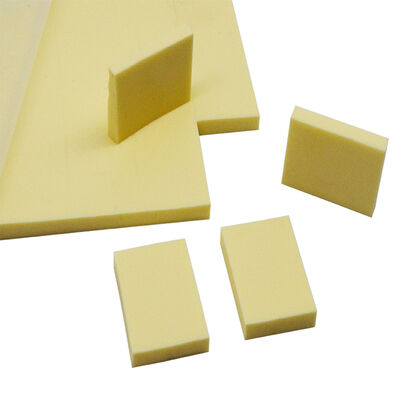

Soft Thermal Pad Electrically Insulating Pad With Exceptional Thermal Conductivity For Home Appliance Industry

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL & RoHS
Model Number:	TIF100-15-14S

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	1000000 pcs/month

Contact Now

Detailed Product Description

Products Name:	Soft Thermal Pad Electrically Insulating Pad With Exceptional Thermal Conductivity For Home Appliance Industry	Thickness:	0.25mm~5.0mm(0.010"~0.200")
Keywords:	Soft Thermal Pad	Color:	Yellow
Density:	2.5g/cm³	Dielectric Breakdown Voltage:	>5500 VAC
Thermal Conductivity:	2.0W/m-K	Construction:	Ceramic Flled Silicone Elastomer
Application:	Home Appliance Industry

Soft Thermal Pad Electrically Insulating Pad With Exceptional Thermal Conductivity For Home Appliance Industry

Company Profile

With professional R&D capabilities and many year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

The TIF^®100-20-19S Series is a well-balanced, general-purpose thermal pad.It offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.

Features

> Good thermal conductivity 2.0W/mK
> Good softness and fillability
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance

Applications

> Al Servers
> Semiconductor Packaging
> Low-Altitude Aircraft
> Optical Communication Products
> 5G Base Stations

> Home appliance industry
> Power module
> Wearable device
> Solar photovoltaic panel
> LED lighting fixtures

Typical Properties of TIF^®100-20-19S Series
Property	Value		Test method
Color	Yellow		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	2.5		ASTM D792
Thickness Range(inch/mm)	0.010~0.030 (0.25~0.50)	0.030~0.200 (0.75~5.00)	ASTM D374
Hardness	65 Shore 00	45 Shore 00	ASTM 2240
Continuos Use Temp	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	5.0 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Thermal conductivity(w/m-K)	2.0		ASTM D5470
	2.0		ISO22007
Fire rating	V-0		UL94 (E331100)

Standard Sheets Sizes:

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mm×406 mm)

Component Codes:

Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

TheTIF^®series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Our services

Online-service : 12 hours , Inquiry reply within fastest.

Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us

4. We will reply you as soon as possible with Email or online

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.
