1.5W/MK Soft Silicone Thermally Conductive Putty For LED Lighting

1.5W/MK Soft Silicone Thermally Conductive Putty For LED Lighting

  • 1.5W/MK Soft Silicone Thermally Conductive Putty For LED Lighting
1.5W/MK Soft Silicone Thermally Conductive Putty For LED Lighting
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF015-07
Payment & Shipping Terms:
Minimum Order Quantity: 1000tube
Price: 0.1-100USD/KG
Packaging Details: 300cc/tube
Delivery Time: 3-8 WORK DAYS
Payment Terms: T/T
Supply Ability: 10000KG/MONTH
Contact Now
Detailed Product Description
Application: LED Lighting Color: Green
Made By: High Vicosity Silicon Oil Keyword: Green Silicon Thermally Conductive Putty
Continuous Use Temp: -45-200 ℃
High Light:

Silicone Thermally Conductive Putty

,

LED Lighting Thermally Conductive Putty

,

1.5W/MK thermally conductive gap filler

1.5W/mK soft silicone thermally conductive putty thermal gap filler for LED lighting​



Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

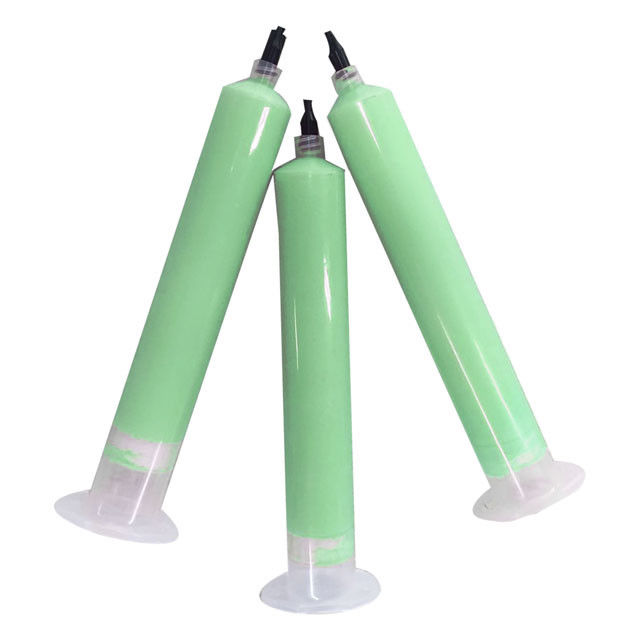

TIF015-07 is a soft silicone putty thermal gap filler,which blend with exclusive formula,that offer superior thermal performance, and compressibility. Due to TIF100-15 is made by high vicosity silicon oil ,that can prevent thermal formula seprate from it. Besides ,compared with traditionally thermal pad, it can control bonded shifiting issue much better.
TIF015-07  operation mold is simliar as grease ,such as silkprint and screen print or automatic injected facility. TIF100-15 can be applied on chip micro processor,PPGAs,Micro BGA package,BGA package,DSP chip,LED lighting and other high power electric component .

Application

> Heat-sink & frame
> LED backlight module,LED lighting
> High speed hardware driver
> Micro heat pipe ,Vihicel enginee controler
> Telecom industry

Feature

> Thermal conductivity:  1.5W/mK
> Soft, very low compression
> Operate automaticly


TIFTM015-07 Property
Color Green Visual
Construction & Composition Ceramic filled silicon material **********
Viscosity 4000,000cps GB/T 10247
Specific Gravity 2.3 g/cc ASTM D297
Thermal conductivity 1.5 W/mK ISO 22007-2
Thermal diffusivity 0.847 mm2/s ISO 22007-2
Specific heat capacity 2.2 MJ/m3K ISO 22007-2
Continuous Use Temperature -45 ~200°C ******
Dielectric breakdown strength 200 V/mil ASTM D149
Flame Rating 94V0 E331100
Outgassing,%TML 0.90% ASTM E595


30 cc/pc, 98 pc/box; 300 cc/pc 6 pc/box

We offer the custom packaged in syringes for automated despensing applications.Please contact us for confirming.





1.5W/MK Soft Silicone Thermally Conductive Putty For LED Lighting 0

Ziitek Culture



Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.



Q:How can we get detailed price list?

A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.



Q: What kind of packaging you offer?

A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.



Q:Do big buyers have promotional prices?

A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.
