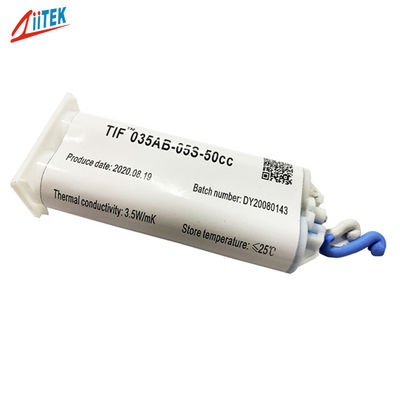

China Company Supplied Two Part Formulation Thermally Conductive Putty 3.5W/MK

China Company Supplied Two Part Formulation Thermally Conductive Putty 3.5W/MK

  • China Company Supplied Two Part Formulation Thermally Conductive Putty 3.5W/MK
  • China Company Supplied Two Part Formulation Thermally Conductive Putty 3.5W/MK
China Company Supplied Two Part Formulation Thermally Conductive Putty 3.5W/MK
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF035AB-05S
Payment & Shipping Terms:
Minimum Order Quantity: 1000tube
Price: 0.1-100USD/tube
Packaging Details: 50cc/tube
Delivery Time: 3-8 WORK DAYS
Payment Terms: T/T
Supply Ability: 100000tubes/MONTH
Contact Now
Detailed Product Description
Operation Temperature: ﹣45~200℃ Thermal Conductivity: 3.5W/MK
Volume Resistivity: 1012 Ohm-meter Shelf Life@25℃: 6 Months
High Light:

Two Part Formulation Thermally Conductive Putty

,

Thermally Conductive Putty 3.5W/MK

,

heat transfer putty 3.5w/mk

Two-part formulation Thermally Conductive Putty for Telecommunications with quickly cured time



Company Profile

Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.



Ziitek TIF035AB-05S Series is a highly thermal conductive, liquid gap filling material. It is provide with two-component and different temperature curing system. The product was supplied as highly thermal conductive, soft and elastomer for coupling on electrical devices modul. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components. It is liquid approach offer variety of thickness, replacing individual die-cut and specific pad thickness. Different from grease, the cured product is dry and can be touch. It can intented for use in thermal applications.



TIF035AB-05S-Datasheet-REV02.pdf



Features:

1. Good thermal conductivity: 3.5W/mk
2. UL recognized
3. Naturally tacky needing no further adhesive coating
4. Two-part formulation for easy storage
5. High durability
6. Optimized shear thinning characteristics for ease of dispensing



Applications:

1. Notebook
2. Set top boxes
3. Monitoring the Power Box
4. High speed mass storage drives
5. Heat sink any heat generating semiconductor





                           Typical Properties of TIF035AB-05S Series
                                       Typical Uncured Material
Property Numerical Test Method
Color/Part A White Visual
Color/Part B Blue Visual
Viscosity as Mixed (cps) 1500,000 cps GB/T 10247
Density 3.1g/cc ASTM D792
Mix Ratio 1:1 ******
Shelf Life@25℃ 6 months ******
                                              Cure Schedule
Pot Life @25℃ 30min ******
Cure @25℃ 60min ******
Cure @100℃ 30min Visual
                                              Cure Properties
Color Blue Visual
Hardness 45 shore00 ASTM D2240
Continuous Use Temp ﹣45~200℃ ******
Voltage Strength 200 V/mil ASTM D149
Dielectric Constant 4.6MHz ASTM D150
Volume Resistivity 1012 Ohm-meter ASTM D257
Flame Rating 94V0 E331100
Thermal Conductivity 3.5W/Mk ISO22007-2
Specific Heat Capacity 2.2MJ/m3K ISO22007-2


Product Specifications:
50cc/pc, 48pcs/box; 400cc/pc, 9pcs/box
We offer the custom packaged in Syringes for automated despensing applications. Please contact us for confirming.



Our services

Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples



After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.
