Easy Release Construction Heat Dissipation Pad It Infrastructure Parts 75 Shore 00

Easy Release Construction Heat Dissipation Pad It Infrastructure Parts 75 Shore 00

  • Easy Release Construction Heat Dissipation Pad It Infrastructure Parts 75 Shore 00
  • Easy Release Construction Heat Dissipation Pad It Infrastructure Parts 75 Shore 00
Easy Release Construction Heat Dissipation Pad It Infrastructure Parts 75 Shore 00
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF120-05UF thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Certification: ISO9001 Keyword: Thermal Gap Pad
Part Number: TIF120-05UF Name: Easy Release Construction Heat Sink Pad For IT Infrastructure, 75 Shore 00
Feature: Electrically Isolating Specific Gravity: 2.2 G/cc
High Light:

easy release construction heat dissipation pad

,

75 shore 00 heat dissipation pad

,

it infrastructure heat sink pad

Easy Release Construction Heat Sink Pad for IT Infrastructure, 75 Shore 00​



Company Profile

With professional R&D capabilities and over 18 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.



TIF100-05UF-Datasheet-REV02.pdf

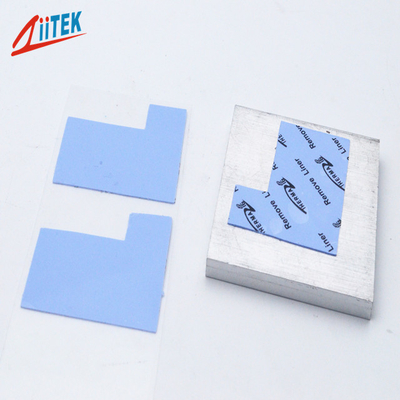

Ziitek TIF120-05UF use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.




<Good thermal conductive:1.5 W/mK
<Thickness: 0.5mmT
<Hardness:75 Shore 00
<Colour: Blue

<Easy release construction
<Electrically isolating
<High durability






Applications

<Automotive electronics

<Set top boxes

<Audio and video components

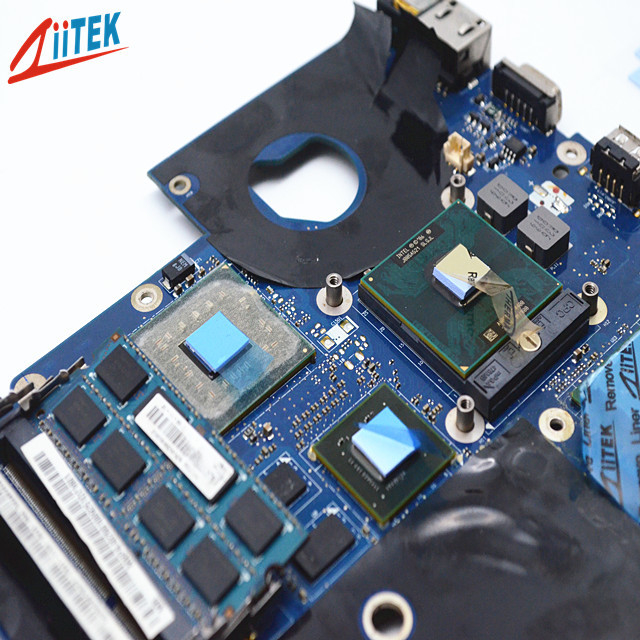

<IT infrastructure

<GPS navigation and other portable devices

<CD-Rom, DVD-Rom cooling




Typical Properties of TIF120-05UF

Product Name TIF120-05UF Series
Colour Blue
Construction & Compostion Ceramic filled silicone elastomer
Specific gravity 2.2 g/cc
Thickness 0.5mmT
Hardness 75 Shore 00
Dielectric constant@1MHz 3.9 MHz
Continuos Use Temp -40 to 160℃
Dielectric Breakdown Voltage >5500 VAC
Thermal conductivity 1.5 W/mK
Volume Resistivity 1.0*1012 Ohm-cm






Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)



Consult the factory to alternate thickness.
