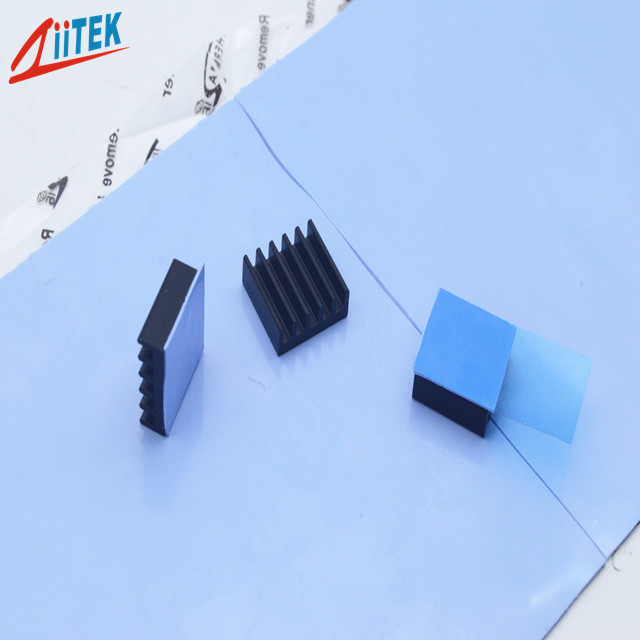

Silicone Led Ceiling Lamp Heat Sink Thermal Pad Specific Gravity 2.2 G/Cc

Silicone Led Ceiling Lamp Heat Sink Thermal Pad Specific Gravity 2.2 G/Cc

Silicone Led Ceiling Lamp Heat Sink Thermal Pad Specific Gravity 2.2 G/Cc
video
Silicone Led Ceiling Lamp Heat Sink Thermal Pad Specific Gravity 2.2 G/Cc
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF140-05UF thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Part Number: TIF140-05UF Feature: Good Thermal Conductive
Specific Gravity: 2.2 G/cc Certification: ISO9001
Name: Moldability For Complex Parts Silicone Pads For LED Ceilinglamp, Specific Gravity 2.2 G/cc Keyword: Thermal Gap Pad
High Light:

silicone heat sink thermal pad

,

2.2 g/cc heat sink thermal pad

,

led ceiling lamp heat sink pad

Moldability for Complex Parts Silicone Pads for LED Ceilinglamp, Specific gravity 2.2 g/cc



Company Profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.



TIF100-05UF-Datasheet-REV02.pdf



Ziitek TIF140-05UF is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.




<Good thermal conductive:1.5 W/mK
<Thickness: 1.0mmT
<Hardness:75 Shore 00
<Colour: Blue

<Good thermal conductive
<Moldability for complex parts
<Soft and compressible for low stress applications







Applications

<LED Power Supply

<LED Controller

<LED Ceilinglamp

<Monitoring the Power Box

<AD-DC Power Adapters

<Rainproof LED Power




Typical Properties of TIF140-05UF

Product Name TIF140-05UF Series
Colour Blue
Construction & Compostion Ceramic filled silicone elastomer
Specific gravity 2.2 g/cc
Thickness 1.0mmT
Hardness 75 Shore 00
Dielectric constant@1MHz 3.9 MHz
Continuos Use Temp -40 to 160℃
Dielectric Breakdown Voltage >5500 VAC
Thermal conductivity 1.5 W/mK
Volume Resistivity 1.0*1012 Ohm-cm






Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Silicone Led Ceiling Lamp Heat Sink Thermal Pad Specific Gravity 2.2 G/Cc 0




Independent R&D team



Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us

4. We will reply you as soon as possible with Email or online



Silicone Led Ceiling Lamp Heat Sink Thermal Pad Specific Gravity 2.2 G/Cc 1

FAQ

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
