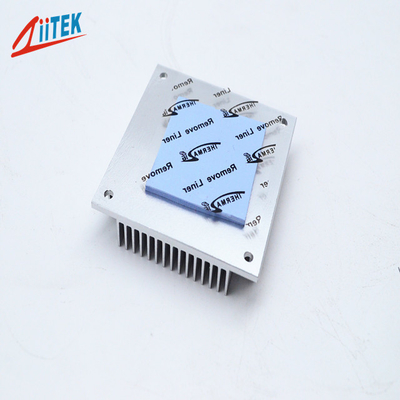

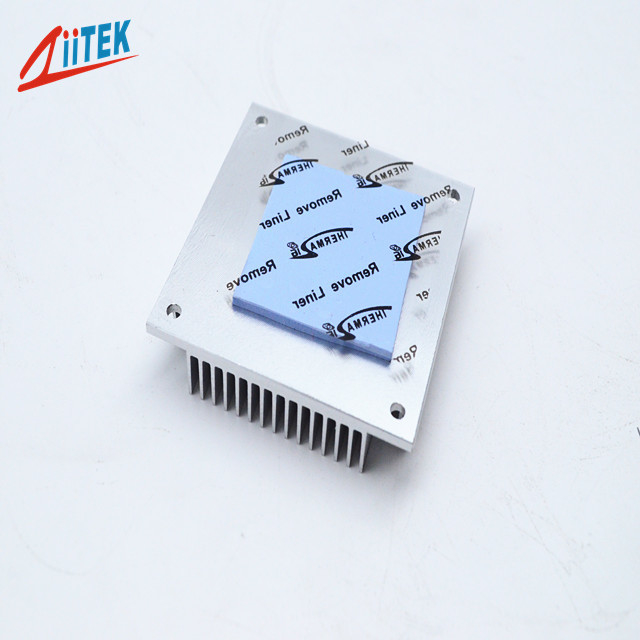

3.9 MHz 2.5mm Heat Sink Thermal Pad Silicone For LED Lit Lamps

3.9 MHz 2.5mm Heat Sink Thermal Pad Silicone For LED Lit Lamps

  • 3.9 MHz 2.5mm Heat Sink Thermal Pad Silicone For LED Lit Lamps
  • 3.9 MHz 2.5mm Heat Sink Thermal Pad Silicone For LED Lit Lamps
3.9 MHz 2.5mm Heat Sink Thermal Pad Silicone For LED Lit Lamps
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF1100-05UF thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Name: 3.9 MHz Outstanding Thermal Performance Silicone Pads For LED-lit Lamps Color: Blue
Feature: Easy Release Construction Keyword: Thermal Gap Pad
Dielectric Constant: 3.9 MHz Certification: ISO14001
High Light:

Heat Sink Thermal Pad 3.9 MHz

,

Lit Lamps Heat Sink Thermal Pad

,

2.5mm Silicone Thermal Heatsink Insulator Pads

3.9 MHz Outstanding Thermal Performance Silicone Pads for LED-lit Lamps



Company Profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.



TIF100-05UF-Datasheet-REV02.pdf



Ziitek TIF1100-05UF thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.




<Good thermal conductive:1.5 W/mK
<Thickness: 2.5mmT
<Hardness:75 Shore 00
<Colour: Blue

<RoHS compliant
<UL recognized
<Easy release construction






Applications

<cooling components to the chassis of frame

<High speed mass storage drives

<Heat Sinking Housing at LED-lit BLU in LCD

<LED TV and LED-lit lamps

<RDRAM memory modules

<Micro heat pipe thermal solutions




Typical Properties of TIF1100-05UF

Product Name TIF1100-05UF Series
Colour Blue
Construction & Compostion Ceramic filled silicone elastomer
Specific gravity 2.2 g/cc
Thickness 2.5mmT
Hardness 75 Shore 00
Dielectric constant@1MHz 3.9 MHz
Continuos Use Temp -40 to 160℃
Dielectric Breakdown Voltage >5500 VAC
Thermal conductivity 1.5 W/mK
Volume Resistivity 1.0*1012 Ohm-cm



Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)



Consult the factory to alternate thickness.



3.9 MHz 2.5mm Heat Sink Thermal Pad Silicone For LED Lit Lamps 0




Ziitek Culture



Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.



3.9 MHz 2.5mm Heat Sink Thermal Pad Silicone For LED Lit Lamps 1
