| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF1120-05UF thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Hardness: | 75 Shore 00 | Color: | Blue |
|---|---|---|---|
| Dielectric Constant: | 3.9 MHz | Feature: | High Durability |
| Name: | Dielectric Breakdown Voltage >5500 VAC Electrically Isolating Blue Thermal Pad For Memory Modules | Keyword: | Thermal Gap Pad |
| High Light: | Memory Modules Heat Sink Silicone Pad,3MM Thickness Heat Sink Silicone Pad,3MM Thermal Pad For Heat Sink |
||

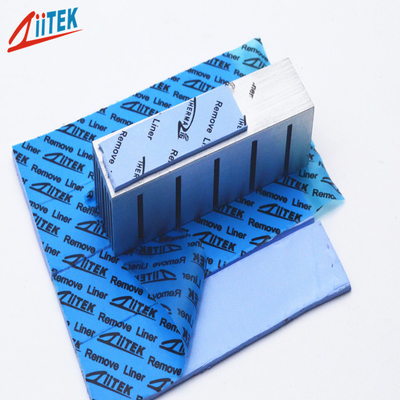

Dielectric Breakdown Voltage >5500 VAC Electrically Isolating Blue Thermal Pad for Memory Modules
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
TIF100-05UF-Datasheet-REV02.pdf
Ziitek TIF1120-05UF use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
<Electrically isolating
<High durability
<Good thermal conductive
<mainboard/mother board
<notebook
<power supply
<Heat pipe thermal solutions

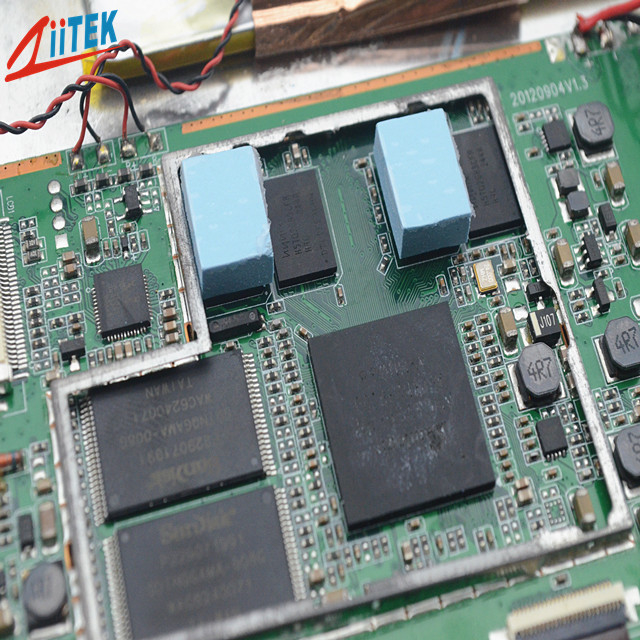

<Memory Modules
<Mass storage devices
|
Typical Properties of TIF1120-05UF
|
|||
| Product Name | TIF1120-05UF Series | ||
| Colour | Blue | ||
| Construction & Compostion | Ceramic filled silicone elastomer | ||
| Specific gravity | 2.2 g/cc | ||
| Thickness | 3.0mmT | ||
| Hardness | 75 Shore 00 | ||
| Dielectric constant@1MHz | 3.9 MHz | ||
| Continuos Use Temp | -40 to 160℃ | ||
| Dielectric Breakdown Voltage | >5500 VAC | ||
| Thermal conductivity | 1.5 W/mK | ||
| Volume Resistivity | 1.0*1012 Ohm-cm | ||
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us.
4. We will reply you as soon as possible with Email or online.
FAQ
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.Contact Person: Miss. Dana
Tel: +86 18153789196
