2.5W/mK Thermal Conductive PCM Phase Change Material Pad For -25C-125C Temperature Range

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHS
Model Number:	TIC800A series

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/PCS
Packaging Details:	242312cm
Delivery Time:	3-6 work days
Payment Terms:	T/T
Supply Ability:	1000000 pcs/month

Contact Now

Detailed Product Description

Keyword:	Phase Change Material	Density:	2.5 G/cc
Thermal Conductivity:	2.5W/mK	Phase Transition Temp:	-25℃~125℃
Material:	Phase Change Pad	Applicatoin:	Netbook And Desktop PCs
Highlight:	PCM Phase Change Material Pad , 2.5W/mK Thermal conductive PCM Pad

Thermal conductive PCM Phase Change Material Pad

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

TIC™800A series is low melting point thermal interface material.At 50℃, TIC™800A series begins to soften and flow, filling the microscopic irregularities of both the thermal solution and the integrated circuit package surface, thereby reducing thermal resistance.

TIC™800A series is a flexible solid at room temperature and freestanding without reinforcing components that reduce thermal performance.

TIC™800A Series shows no thermal performance degradation after 1,000 hours@130℃,or after 500 cycles, from -25℃ to 125℃.The material softens and does not fully change state resulting in minimal migration (pump out)at operating temperatures.

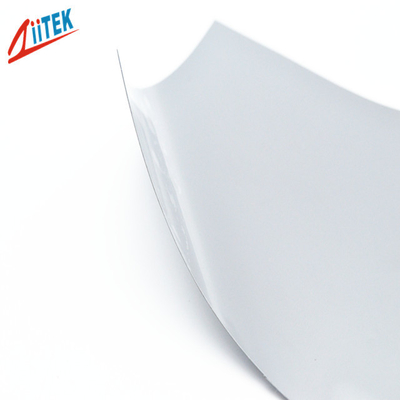

2.5W/mK Thermal Conductive PCM Phase Change Material Pad For -25C-125C Temperature Range 0

Features

> Highly compliant surfacecharacteristic with highthermal conductivity.
> High thermal conductive andHigh dielectric strength.

> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures.

Applications

> Power conversion equipment

> Power semiconductors:
> T0 packages, MOSFETs & IGBTs

> Audio and Video components

> Automotive control units

> Motor controllers
> General high pressure interface

Typical Properties of TIC™800A series
Product Name	TIC™805A	TIC™808A	TIC™810A	Test Method
Color	Gray			Visual
Thickness	0.005"/0.126mm	0.008"/0.203mm	0.010"/0.254mm	*****
Thickness Tolerrance	±0.0008"/0.019mm	±0.0008"/0.019mm	±0.0012"/0.030mm	*****
Specific Gravity	2.5 g/cc			Helium Pycnometer
Phase change softening Temperature	50℃-60℃			******
Temperature Range	-25to 125℃			******
Thermal conductivity	2.5W/mK			ASTM D5470
Thermal Impedance@50psi	0.55℃-in²/W	0.062℃-in²/W	0.074℃-in²/W	ASTM D5470
Thermal Impedance@50psi	0.35℃-cm²/W	0.40℃-cm²/W	0.48℃-cm²/W	ASTM D5470

Standard Thicknesses:
0.005"(0.127mm),0.008"(0.203mm),0.010"(O.254mm)
Consult the factory alternate thickness.

Standard Sizes:
10"x 16"(254mm x 406mm)16" X 400’(406mm x 121.92M)
TIC™800A series are supplied with a white release paper and a bottom liner.

TIC™800A series is available in kiss cut an extended pull tab liner or individual die cut shapes.

Peressure Sensitive Adhesive:
Peressure Sensitive Adhesive is not applicable for TIC™800A series products.

Reinforcement:
No reinforcement is necessary.

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
