| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | RoHS |
| Model Number: | TIC800K |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 24*23*12cm |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000000 pcs/month |
| Features: | High-voltage Insulation | Name: | High-Voltage Insulation Thermal Conductive Phase Change Material For Electronic Module |
|---|---|---|---|
| Keyword: | Thermal Conductive Phase Change Material | Color: | Light Amber |
| Material: | PCM With Kapton Film | Volume Resistivity: | 3.5X10^14 Ohm-meter |
| Application: | Power Conversion Equipment | ||
| Highlight: | outlast phase change material,phase change thermal pad,PC Light Pcm Phase Change Material |
||

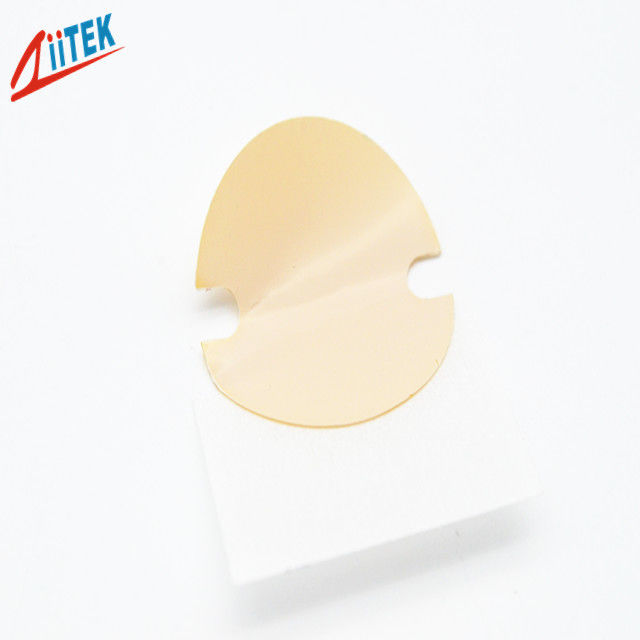

High-Voltage Insulation Thermal Conductive Phase Change Material For Electronic Module
TIC800K Series is a high thermal and dielectric performance insulator pad consisting of a ceramic filled phase change compound coated on MT Kapton film.TIC800K phase change coating all but eliminates contact thermalresistance. The phase change coating melts at 50℃ and replacesallcontact areas that contain air.The role is to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.
TIC800K-Serice-Datasheet(E)-REV01 (1).pdf
Feature:
> Available in varies thicknesses
> Broad range of hardnesses available
> high voltage isolation
> Resistant to tears and punctures
Application:
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> mainboard/mother board
| Typical Properties of TIC™800K series | ||||
| Product Name | TIC™805K | TIC™806K | TIC™808K | Test Method |
| Color | Light Amber | Visual | ||
| Composite Thickness | 0.004"/0.102mm | 0.005"/0.127mm | 0.006"/0.152mm | ASTM D374 |
| MT Kapton ® Thickness | 0.001"/0.025mm | 0.001"/0.025mm | 0.002"/0.050mm | ASTM D374 |
| Total Thickness | 0.005"/0.127mm | 0.006"/0.152mm | 0.008"/0.203mm | ASTM D374 |
| Specific Gravity | 2.0 g/cc | ASTM D297 | ||
| Heat Capacity | 1 l/g-K | ASTM C351 | ||
| Tensile Strength | >13.5 Kpsi | >13.5 Kpsi | >17.8 Kpsi | ASTM D412 |
| Continuous Use Temp | (-58 to 266℉) / (-50 to 130℃) | *** | ||
| Dielectric Breakdown Voltage | >4000 VAC | >5000 VAC | >6000 VAC | ASTM D149 |
| Dielectric Constant | 1.8 MHz | ASTM D150 | ||
| Volume Resistivity | 3.5*10^14Ohm-meter | ASTM D257 | ||
| Thermal conductivity | 1.6 W/mK | ASTM D5470 | ||
| Thermal Impedance@50psi | 0.12℃-in²/W | 0.13℃-in²/W | 0.16℃-in²/W | ASTM D5470 |
Standard Thicknesses:
Packaging Details & Lead time
The packaging of Phase Change Material
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time (QTY 5000pcs) :3-5 working days
More than 5000PCS: Please contact us to negotiation
Company Introduction
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
Contact Person: Miss. Dana
Tel: +86 18153789196
