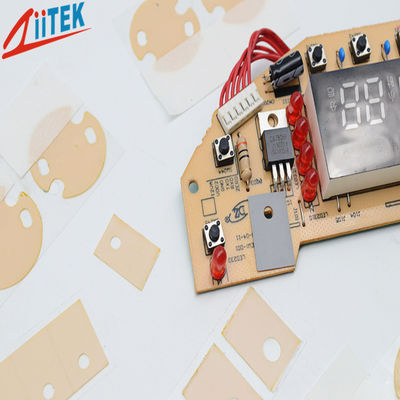

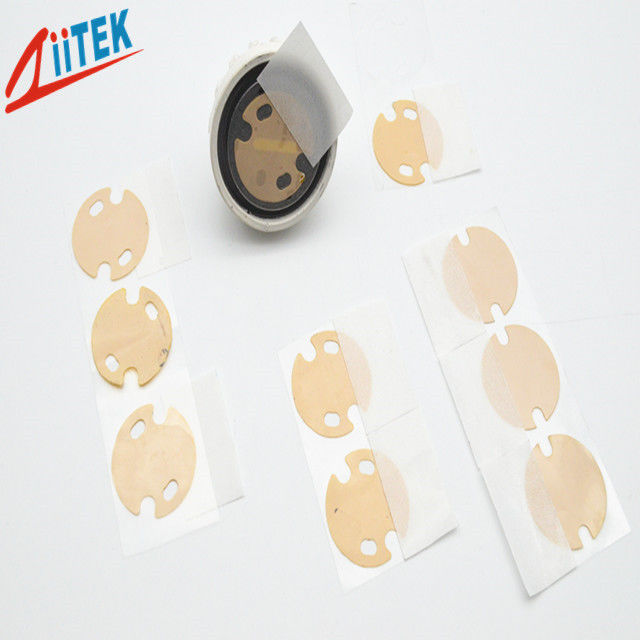

Electrically Insulating PCM Thermally Conductive Phase Change Material for DC-DC Converter

Electrically Insulating PCM Thermally Conductive Phase Change Material for DC-DC Converter

Electrically Insulating PCM Thermally Conductive Phase Change Material for DC-DC Converter
video
Electrically Insulating PCM Thermally Conductive Phase Change Material for DC-DC Converter
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHS
Model Number: TIC805K
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*23*12cm
Delivery Time: 3-6 work days
Payment Terms: T/T
Supply Ability: 1000000 pcs/month
Contact Now
Detailed Product Description
Features: Low Thermal Resistance With High Voltage Isolation Name: High-Voltage Insulation Thermal Conductive Phase Change Material For Electronic Module
Thermal Conductivity: 1.6W/mK Application: Power Conversion Equipment
Keyword: Electrically Insulating Materails Color: Light Amber
Volume Resistivity: 3.5X10^14 Ohm-meter Material: PCM With Kapton Film
Highlight:

Thermally Conductive Phase Change Material

,

DC-DC Converter PCM

,

Electrically Insulating PCM

Electrically Insulating PCM Thermally Conductive Phase Change Material for DC-DC Converter



TIC800K Series is a high thermal and dielectric performance insulator pad consisting of a ceramic filled phase change compound coated on MT Kapton film.TIC800K phase change coating all but eliminates contact thermalresistance. The phase change coating melts at 50℃ and replacesallcontact areas that contain air.The role is to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.



TIC800K-Serice-Datasheet(E)-REV01 (1).pdf



Feature:



> Highly compliant surface characteristic with high thermal conductivity
> High thermal conductive and High dielectric strength

> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures





Application:



> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure





Typical Properties of TIC™800K series
Product Name TIC™805K TIC™806K TIC™808K Test Method
Color Light Amber Visual
Composite Thickness 0.004"/0.102mm 0.005"/0.127mm 0.006"/0.152mm ASTM D374
MT Kapton ® Thickness 0.001"/0.025mm 0.001"/0.025mm 0.002"/0.050mm ASTM D374
Total Thickness 0.005"/0.127mm 0.006"/0.152mm 0.008"/0.203mm ASTM D374
Specific Gravity 2.0 g/cc ASTM D297
Heat Capacity 1 l/g-K ASTM C351
Tensile Strength >13.5 Kpsi >13.5 Kpsi >17.8 Kpsi ASTM D412
Continuous Use Temp (-58 to 266℉) / (-50 to 130℃) ***
Dielectric Breakdown Voltage >4000 VAC >5000 VAC >6000 VAC ASTM D149
Dielectric Constant 1.8 MHz ASTM D150
Volume Resistivity 3.5*10^14Ohm-meter ASTM D257
Thermal conductivity 1.6 W/mK     ASTM D5470
Thermal Impedance@50psi 0.12℃-in²/W 0.13℃-in²/W 0.16℃-in²/W ASTM D5470


Standard Thicknesses:

0.005"(0.127mm) 0.006"(0.152mm) 0.008"(0.203mm)
Individual die cut shapes and custom thickness can be supplied.Please contact us for confirming.

Standard Sizes:
10" x 100'(254mm x 30.48M)
Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive :
Peressure Sensitive Adhesive is not applicable for TIC™800K Series products

Electrically Insulating PCM Thermally Conductive Phase Change Material for DC-DC Converter 0


Packaging Details & Lead time



The packaging of Phase Change Material

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time (QTY 5000pcs) :3-5 working days

More than 5000PCS: Please contact us to negotiation
