| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF015-07 |
| Minimum Order Quantity: | 1000tube |
|---|---|
| Price: | 0.1-100USD/KG |
| Packaging Details: | 300cc/tube |
| Delivery Time: | 3-8 WORK DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 10000KG/MONTH |
| Products Name: | 1.5 W/M-K China Thermal Conductive Gel For Electronics Manufacturer | Application: | Heat-sink & Frame |
|---|---|---|---|
| Color: | Gray | Keywords: | Thermal Conductive Gel |
| Flame Rating: | UL 94 V-0 | Certifications: | RoHS |
| Thermal Conductivity: | 1.5W/m-K | SPecific Gravity: | 2.5g/cm³ |
| Highlight: | China Thermal Conductive Gel,Electrical Products Thermal Conductive Gel,1.5 W/M-K Thermal Conductive Gel |
||
1.5 W/M-K China Thermal Conductive Gel For Electronic And Electrical Products
TIFTM015-07 is a soft silicone putty thermal gap filler,which blend with exclusive formula,that offer superior thermal performance, and compressibility. Due to TIFTM015-07 is made by high vicosity silicon oil ,that can prevent thermal formula seprate from it. Besides ,compared with traditionally thermal pad, it can control bonded shifiting issue much better.

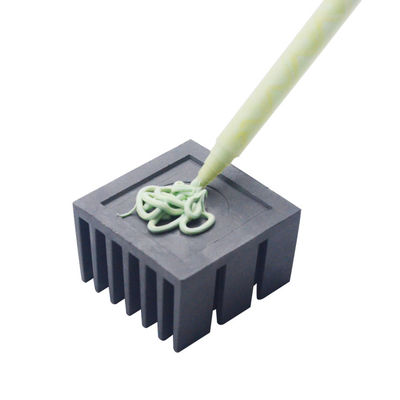

TIFTM015-07 operation mold is simliar as grease ,such as silkprint and screen print or automatic injected facility. TIF015-07 can be applied on chip micro processor,PPGAs,Micro BGA package,BGA package,DSP chip,LED lighting and other high power electric component .
TIF015-07 Series Datasheet-REV02.pdf
Feature
> Thermal conductivity:1.5W/mK
> Soft, very low compression
> Low thermal inpedance
> Operate automaticly
> Proven long-term reliability
Application
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
| TIFTM015-07 Property | |||
| Color | Green | Visual | |
| Construction & Composition | Ceramic filled silicon material | ********** | |
| Viscosity | 4000 Pa.s | GB/T 10247 | |
| Specific Gravity | 2.5g/cm³ | ASTM D297 | |
| Thermal conductivity | 1.5W/mK | ISO 22007-2 | |
| Thermal diffusivity | 0.847mm2/s | ISO 22007-2 | |
| Specific heat capacity | 2.2 MJ/m3K | ISO 22007-2 | |
| Continuous Use Temperature | -45 ~200°C | ****** | |
| Dielectric breakdown strength | 200 V/mil | ASTM D149 | |
| Flame Rating | V-0 | UL94 | |

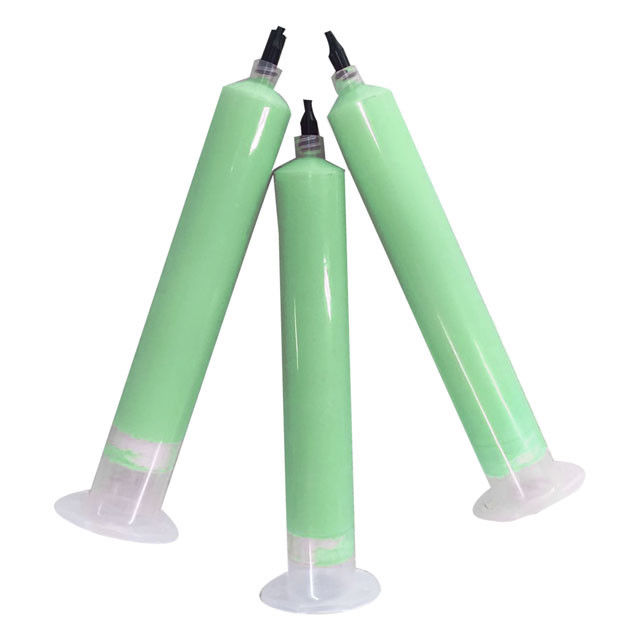

30 cc/pc, 98 pc/box; 300 cc/pc； 6 pc/box
We offer the custom packaged in syringes for automated despensing applications.
Please contact us for confirming.
