Excellent Surface Wettability Phase Change Thermal Paste For Power Semiconductor Devices And Modules

Excellent Surface Wettability Phase Change Thermal Paste For Power Semiconductor Devices And Modules

  • Excellent Surface Wettability Phase Change Thermal Paste For Power Semiconductor Devices And Modules
  • Excellent Surface Wettability Phase Change Thermal Paste For Power Semiconductor Devices And Modules
Excellent Surface Wettability Phase Change Thermal Paste For Power Semiconductor Devices And Modules
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHS
Model Number: TIC800R-SP
Document: TIC800R-SP_Data Sheet.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*13*12cm cartons
Delivery Time: 3-6 work days
Payment Terms: T/T
Supply Ability: 100000KG/month
Contact Now
Detailed Product Description
Name: Excellent Surface Wettability Phase Change Thermal Paste For Power Semiconductor Devices And Modules Recommended Operating Temperature (℃): -40~125℃
Color: Gray Keyword: Phase Change Thermal Paste
Feature: Outstanding Operability And Repairability Phase ChangeTemperature (℃): 50~60℃
Thermal Conductivity: 8.5W/mK Applicatoin: Power Semiconductor Devices And Modules
Highlight:

Phase Change Thermal Paste for semiconductors

,

Surface Wettability Thermal Paste

,

PCM Thermal Paste for power modules

Excellent Surface Wettability Phase Change Thermal Paste For Power Semiconductor Devices And Modules
TIC®800R-SP is a paste-like thermal phase change material that undergoes phase transition at operating temperature, fully filling the micro voids at the contact interface, thereby significantly improving thermal conductivity efficiency. The material adopts a sturdy polymer phase change structure, exhibiting excellent wetting properties within a typical operating temperature range, and can form close contact with various substrate surfaces, achieving extremely low surface contact resistance. The product has undergone rigorous long-term reliability testing and can maintain stable thermal conductivity and physical properties under high temperature, high humidity, temperature cycling and other working conditions, fully meeting the strict requirements of high-performance electronic devices for long-term stability.
Features
  • Excellent thermal conductivity
  • Excellent surface wettability
  • Outstanding operability and repairability
  • Low thermal resistance
  • No need for heating and curing, suitable for automated dispensing processes
Applications
  • Automotive Electronics and New Energy Electronic Control System
  • IT/Enterprise
  • Power Semiconductor Devices and Modules
  • Consumer Electronics
  • Server and data center equipment
Typical Properties of TIC®800R-SP Series
Product Name Value Test Method
Color Gray Visual
Viscosity (mPa*s) 38000 GB/T 10247
Density (g/cm³) 2.6 ASTM D792
Recommended Operating Temperature (℃) -40~125 -
Phase Change Temperature (℃) 50~60 -
Thermal Conductivity (W/mK) (Desolvation) 8.5 ASTM D5470
Thermal Impedance (℃*in²/W) @10 psi 0.03 ASTM D5470
Thermal Impedance (℃*in²/W) @50 psi 0.02 ASTM D5470
Shelf Life (Month) @25℃ 12 (Unopened) -
Product Specifications
30ml/pcs, 50ml/pcs
For product information of different specifications, please contact our company.
If you would like to know more product information about thermal conductive materials, please visit our official website.

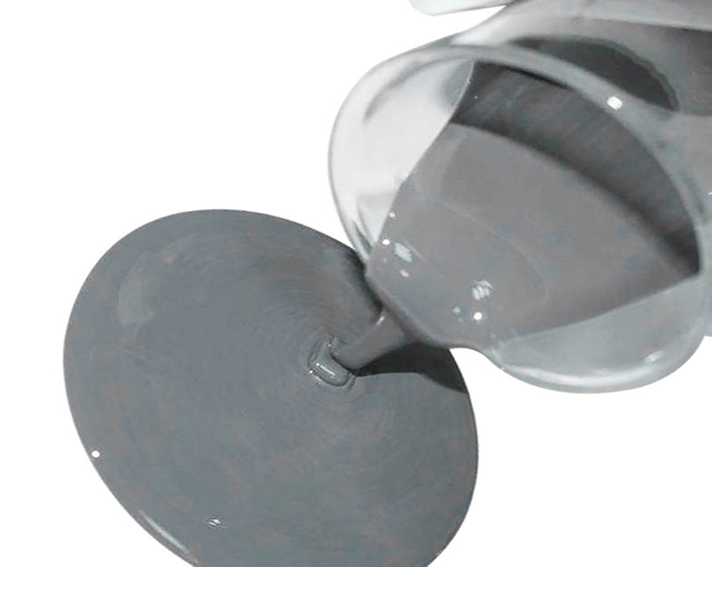

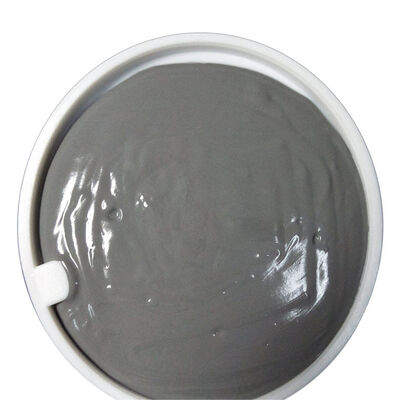

TIC 800R-SP Phase Change Thermal Paste Product Image
