3.0W/MK One-Component Thermal Putty Thermal Conductive Gel For Battery Power Silicone Interface Materials

3.0W/MK One-Component Thermal Putty Thermal Conductive Gel For Battery Power Silicone Interface Materials

  • 3.0W/MK One-Component Thermal Putty Thermal Conductive Gel For Battery Power Silicone Interface Materials
  • 3.0W/MK One-Component Thermal Putty Thermal Conductive Gel For Battery Power Silicone Interface Materials
3.0W/MK One-Component Thermal Putty Thermal Conductive Gel For Battery Power Silicone Interface Materials
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF030-05
Document: TIF030-05_Data Sheet.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1000tube
Price: 0.1-100USD/KG
Packaging Details: 300cc/pcs
Delivery Time: 3-8 working days
Payment Terms: T/T
Supply Ability: 10000KG/MONTH
Contact Now
Detailed Product Description
Name: 3.0W/M.K One-Component Thermal Putty Thermal Conductive Gel For Battery Power Silicone Interface Materials Application: Battery Power
Color: Blue Keyword: 3.0W/mK Thermal Gel
Flame Rating: UL 94 V-0 Density: 3.25g/cm³
Thermal Conductivity: 3.0W/mK Thermal Impedance (℃.in²w) @50psi: 0.075
Thermal Impedance (℃.in²w) @10psi: 0.080
Highlight:

Silicone Thermal Conductive Gel

,

3.0W/mK Silicone Thermal Conductive Gel

,

UL 94 V-0 Thermal Conductive Gel

3.0W/MK One-Component Thermal Putty Thermal Conductive Gel For Battery Power Silicone Interface Materials
Product Description

TIF®030-05 is a soft silicone gel-based gap filler pad, formulated with a special blend of fillers to provide both high thermal conductivity and superior softness. Compared to conventional thermal greases, it has a higher viscosity, which effectively prevents filler separation from the silicone matrix and reduces filler migration, helping maintain consistent thermal performance. It is applied in a similar manner to thermal grease and is suitable for commercial dispensing or automated equipment.

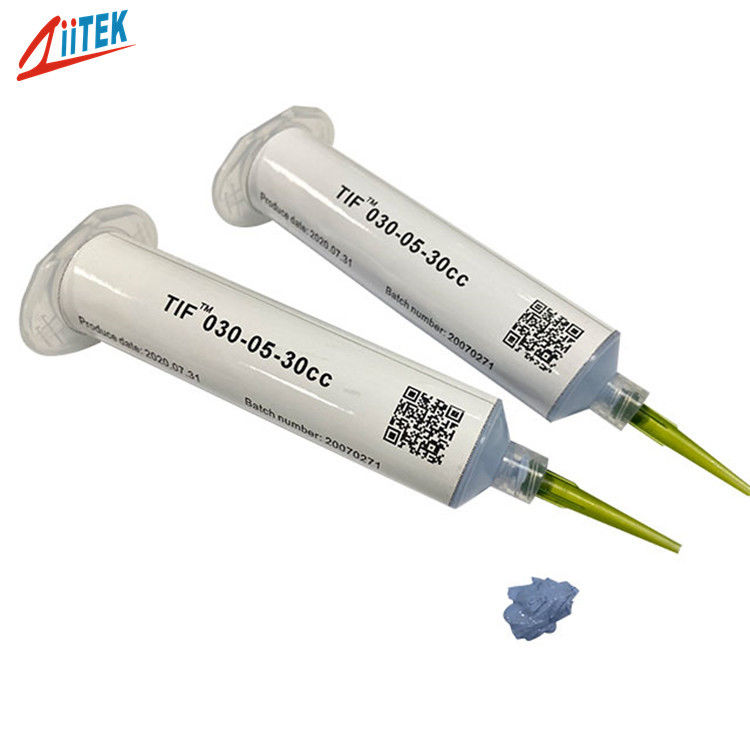

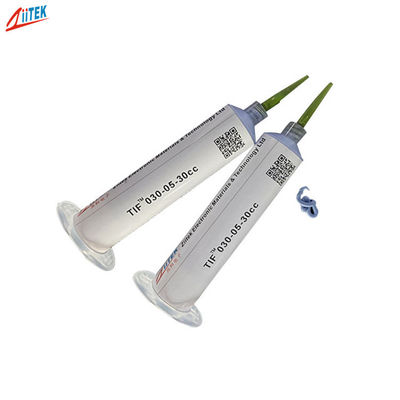

TIF®030-05 Thermal Conductive Gel product photo
Features
  • Thermal conductivity: 3.0 W/mK
  • Soft, very low compression
  • Low thermal impedance
  • Operate automatically
  • Proven long-term reliability
Applications
  • Heat-sink & frame
  • LED backlight module, LED lighting
  • High speed hardware driver
  • Micro heat pipe
  • Vehicle engine controller
  • Telecom industry
  • Semiconductor automatic laboratory equipment
Typical Properties of TIF®030-05
Property Value Test Method
Color Blue Visual
Composition Ceramic filled silicon material -
Flow Rate (g/min) 30 ZKTM B014 (30 cc syringe/ 2.5mm orifice/90 psi)
Density (g/cm³) 3.25 ASTM D792
Thermal conductivity (W/m*K) 3.0 ASTM D5470
Thermal Impedance (℃.in²w) @10psi 0.080 ASTM D5470
Thermal Impedance (℃.in²w) @50psi 0.075 ASTM D5470
Recommended Operating Temp (℃) -40 ~200 ZKTM J025
Breakdown Strength (V/mm) ≥4000 ASTM D149
Bond Line Thickness (mm) 0.10 ZKTM B047
Oil Separation (%) @150°C,24 hrs ＜0.03 HG/T 2502
Volatility Loss (%) @150°C,24 hrs ＜0.2 HG/T 2502
Flame Rating V-0 UL 94
Product Specification
30 cc/pcs, 50cc/pcs, 300 cc/pcs, or custom packaging for automated applications.
For more information about thermal conductive materials, please contact our company.
Company Profile
Ziitek, founded in 2006, has been deeply involved in the field of thermal management for nearly 20 years, and is a high-tech enterprise integrating R&D, production and sales. With the rapid development of industries such as new energy vehicles, energy storage systems, high-performance CPU/GPU chips, AI intelligent automation, 5G communication and aerospace, Zhaoke has developed many kinds of products such as thermal pads, thermal pastes, phase change materials, EMI shielding materials, heating films, foamed silicone seals and so on with the continuous independent innovation of senior engineers, which accurately matches the heat dissipation and sealing needs of various industries. Headquartered in Dongguan, the company has set up production bases in Kunshan, Taiwan Province and Viet Nam to quickly respond to global customers.
Why Choose Us?
  1. Our value message is "Do it right the First time, total quality control"
  2. Our core competencies is thermal conductive interface materials
  3. Competitive advantage products
  4. Confidentiality agreement Business Secret Contract
  5. Free sample offer
  6. Quality assurance contract
Q&A
Q: Are you trading company or manufacturer?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. Or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? Is it free or extra cost?
A: Yes, we could offer samples free of charge.
Q: What is Thermal Gel?
A: Thermal gel is a TIM (Thermal Interface Material) with good flowability and gap-filling capability. It can be applied through dispensing, coating, or other application methods to fill gaps between heat sources and cooling structures.
Q: What is the main advantage of Thermal Gel?
A: The main advantage of thermal gel is its ability to adapt to complex structures and irregular gaps. It is particularly suitable for applications where multiple components with different heights need to be thermally managed simultaneously.
Q: What size gap is Thermal Gel suitable for?
A: The applicable gap range varies depending on the specific thermal gel. It should be determined based on the product's flowability, curing characteristics, and assembly structure.
