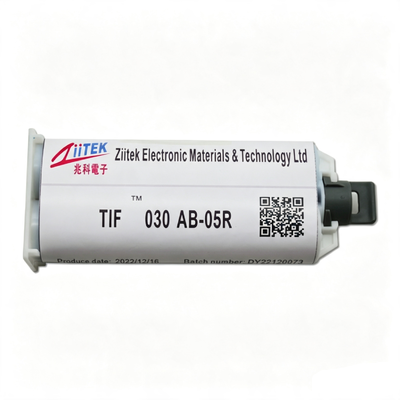

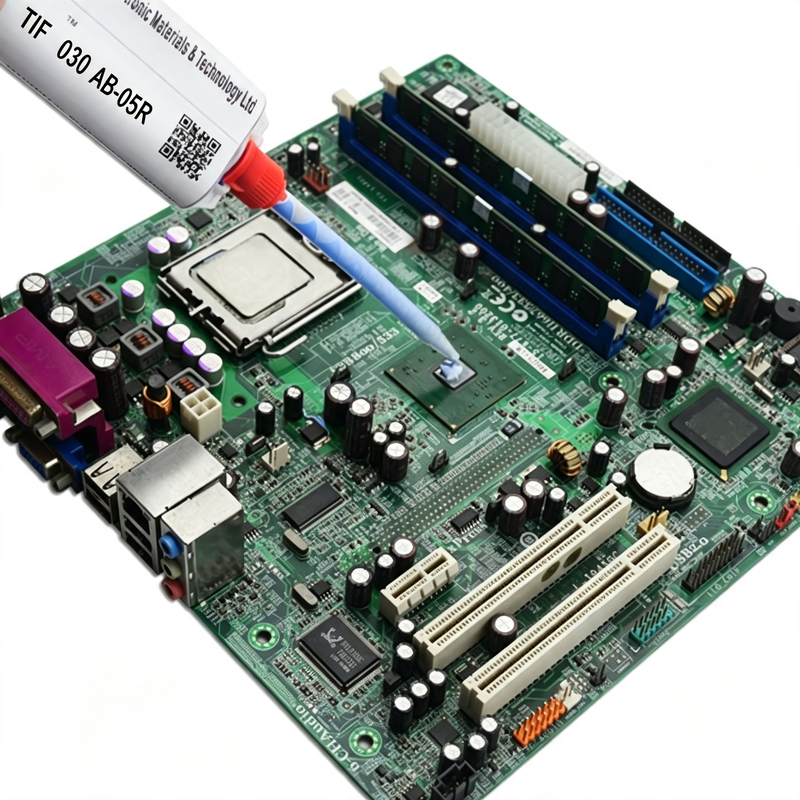

Thermal Conductive Gel Two Parts Liquid Gap Filling Material With 3.0W/mK High Thermal Conductivity For Heat Dissipation In Electronics

Thermal Conductive Gel Two Parts Liquid Gap Filling Material With 3.0W/mK High Thermal Conductivity For Heat Dissipation In Electronics

  • Thermal Conductive Gel Two Parts Liquid Gap Filling Material With 3.0W/mK High Thermal Conductivity For Heat Dissipation In Electronics
  • Thermal Conductive Gel Two Parts Liquid Gap Filling Material With 3.0W/mK High Thermal Conductivity For Heat Dissipation In Electronics
Thermal Conductive Gel Two Parts Liquid Gap Filling Material With 3.0W/mK High Thermal Conductivity For Heat Dissipation In Electronics
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF030AB-05R
Document: TIF030AB-05R_Data Sheet.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1000tube
Price: 0.1-100USD/tube
Packaging Details: 50cc/tube
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000tubes/MONTH
Contact Now
Detailed Product Description
Products Name: Thermal Conductive Gel Two Parts Liquid Gap Filling Material With 3.0W/mK High Thermal Conductivity For Heat Dissipation In Electronics Application: Heat Dissipation In Electronics
Color: Blue Cure @25℃: 45 Min
Cure @70℃: 10 Min Thermal Conductivity: 3.0W/mK
Density: 3.1g/cm³ Keywords: Thermally Conductive Gel
Highlight:

Thermal conductive gel for electronics

,

Liquid gap filling material 3.0W/mK

,

High thermal conductivity heat dissipation gel

Thermal Conductive Gel Two Parts Liquid Gap Filling Material With 3.0W/mK High Thermal Conductivity For Heat Dissipation In Electronics
Product Overview
TIF®050AB-11S is a two-component liquid gap filler material featuring high thermal conductivity, low thermal resistance, excellent electrical insulation, and high temperature aging resistance. After curing, its performance is equivalent to thermal conductive silicone rubber sheets, making it suitable for low stress and high compression modulus scenarios. The cured adhesive layer exhibits good pluggability, facilitating easy separation during RMA without damaging equipment.
Key Features
  • High thermal conductivity
  • Two-part formulation for easy storage
  • Excellent low and high temperature mechanical and chemical stability
  • Ultra-conforming low-stress interface application
  • Easy to remove for RMA rework, no substrate damage
Applications
  • Computer and peripherals
  • Telecommunications
  • Automotive electronics
  • Thermally conductive vibration dampening
  • Heat sink any heat generating semiconductor
Typical Properties - TIF®030AB-05R Series
Uncured Material Properties
Construction Ceramic filled silicon material -
Color/Part A White Visual
Color/Part B Blue Visual
Flow Rate (g/min) 25 Ziitek Test Method (50 cc syringe/1.5 mm orifice/90 psi)
Bond Line Thickness (mm) 0.15 -
Thermal Resistance (℃*in²/W) @10psi 0.09 ASTM D5470
Thermal Resistance (℃*in²/W) @50psi 0.08 ASTM D5470
Mix Ratio 1:1 -
Cure Schedule
Cure @25℃ 45 min Ziitek Test Method
Cure @70℃ 10 min Ziitek Test Method
Cure Material Properties
Color Blue Visual
Hardness (Shore 00) 50 ASTM D2240
Density (g/cm³) 3.1 ASTM D792
Thermal Conductivity (W/mK) 3.0 ASTM D5470
Breakdown Strength (V/mm) ≥5500 ASTM D149
Volume Resistivity (Ohm-cm) ＞1.0x10¹¹ ASTM D257
Recommended Operating Temperature (°C) -40~200℃ -
Flame Rating V-0 UL 94
Product Specifications
Available in 50 cc/pcs, 400 cc/pcs, or customized packaging for automation applications.
