Soft Silicone Based Thermal Conductive Gel With Excellent 3.0W Thermal Conductivity Providing Heat Dissipation For Telecom Industry

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL
Model Number:	TIF030-10
Document:	TIF030-10_Data Sheet.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1000tube
Price:	0.1-100USD/KG
Packaging Details:	30cc/PCS，50cc/pcs
Delivery Time:	3-8 WORK DAYS
Payment Terms:	T/T
Supply Ability:	10000KG/MONTH

Contact Now

Detailed Product Description

Products Name:	Soft Silicone Based Thermal Conductive Gel With Excellent 3.0W Thermal Conductivity Providing Heat Dissipation For Telecom Industry	Density:	2.9 G/cm³
Color:	Gray	Materail:	Ceramic Filled Silicon Material
Recommended Operating Temperature (℃):	-40-200 ℃	Thermal Conductivity:	3.0W/m-K
Keyword:	Thermal Conductive Gel	Application:	Telecom Industry
Highlight:	soft silicone thermal conductive gel , thermal conductive gel for telecom , 3.0W thermal conductivity gel

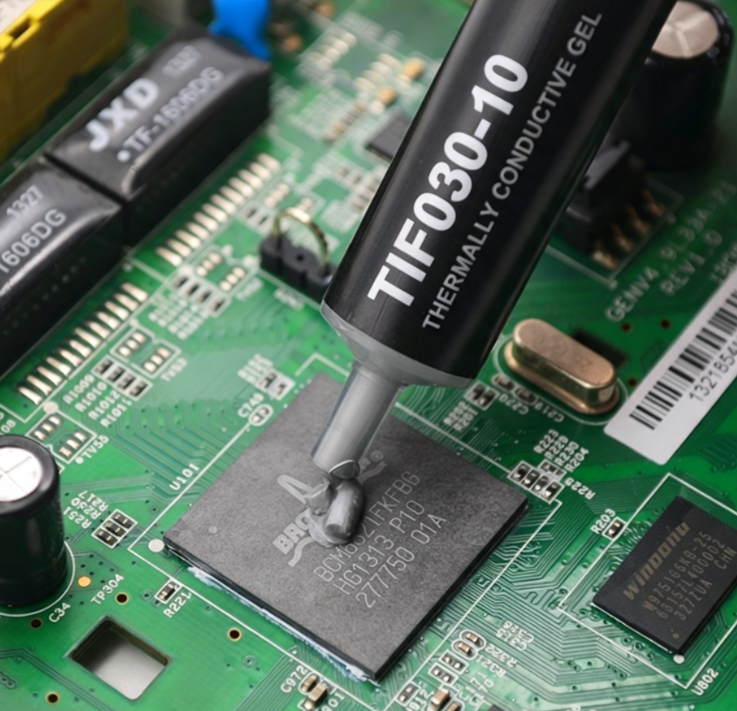

TIF ®030-10 Soft Silicone Based Thermal Conductive Gel

TIF^®030-10 is a soft silicone gel-based gap filler pad, formulated with a special blend of fillers to provide both high thermal conductivity and superior softness. Compared to conventional thermal greases, it has a higher viscosity, which effectively prevents filler separation from the silicone matrix and reduces filler migration, helping maintain consistent thermal performance. It is applied in a similar manner to thermal grease and is suitable for commercial dispensing or automated equipment.

Key Features

High Thermal Conductivity (3.0 W/mK)
Soft with Very Low Compression
Low Thermal Impedance
Suitable for Automated Operation in Dispensing Systems
Proven Long-term Reliability

Applications

Heat-sink & Frame
LED Backlight Module, LED Lighting
High Speed Hardware Driver
Micro Heat Pipe Radiator
Vehicle Engine Controller
Communication Hardware
Semiconductor Automatic Laboratory Equipment

Typical Properties of TIF^®030-10

Property	Value	Test Method
Color	Gray	Visual
Construction	Ceramic filled silicon material	-
Flow Rate (g/min) (30cc syringe/2.5mm orifice/90 psi)	12	Ziitek Test Method
Density (g/cm³)	2.9	ASTM D792
Thermal Conductivity (W/mK)	3.0	ASTM D5470
Thermal Impedance (℃-in²/W) @10psi	0.11	ASTM D5470
Thermal Impedance (℃-in²/W) @50psi	0.10	ASTM D5470
Recommended Operating Temperature	-40~200℃	-
Breakdown Strength (V/mm)	≥4000	ASTM D149
Volume Resistivity (Ohm*cm)	＞1.0×10¹¹	ASTM D257
Bond Line Thickness (mm)	0.10	-
Flame Rating	V-0	UL 94
Oil Separation (%) @150°C, 24 hrs	＜0.03	-
Volatility Loss (%) @150°C, 24 hrs	＜0.2	-

Packing Details

30 cc/pc, 50 cc/pc, 300 cc/pc

For more information about thermal conductive materials, please contact our company.

Company Profile

Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:

Thermal gap pad
Thermal graphite sheet/film
Thermal double-sided tape
Thermal insulation pad
Thermal grease
Phase change material
Thermal gel

All products are compliant with UL94 V-0, SGS and ROHS standards.

Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL

Frequently Asked Questions

Q: What thermal conductivity test method was used to achieve the values given on the data sheets?

A: A test fixture is utilized that meets the specifications outlined in ASTM D5470.

Q: Is GAP PAD offered with an adhesive?

A: Currently, most thermal gap pad surfaces have double side natural inherent tack. Non-stick surface can also be treated according to customer's requirements.

Q: What are thermal pads used for?

A: Thermal pads transfer heat away from hot electronic parts like computer chips into a metal cooler or heat sink. They fill empty air spaces between surfaces, provide electrical safety, and keep parts from getting too hot.
