| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF030-05 |
| Minimum Order Quantity: | 1000tube |
|---|---|
| Price: | 0.1-100USD/KG |
| Packaging Details: | 300cc/tube |
| Delivery Time: | 3-8 WORK DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 10000KG/MONTH |
| Name: | High Quality 3W Silicone Thermal Conductive Gel With Tube Packing | Application: | Heat-sink Cooling |
|---|---|---|---|
| Color: | Bblue | Keyword: | 3W Thermal Gel |
| Flame Rating: | UL 94 V-0 | Specific Gravity: | 3.1g/cc |
| Thermal Conductivity: | 3.0W/mK | ||
| Highlight: | Silicone Thermal Conductive Gel,3.0W/mK Silicone Thermal Conductive Gel,UL 94 V-0 Thermal Conductive Gel |
||

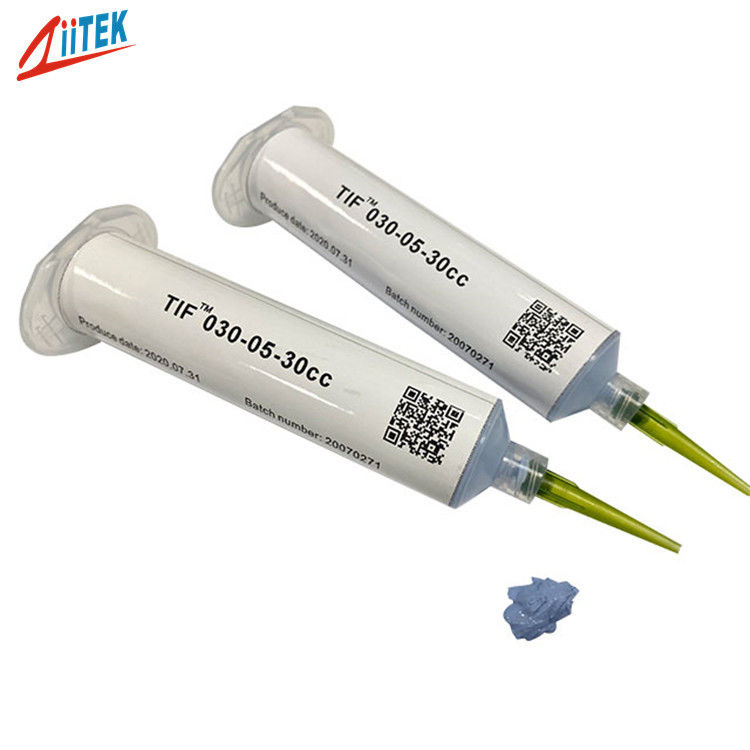

High Quality 3W Silicone Thermal Conductive Gel With Tube Packing
TIF030-05 is a soft silicone putty thermal gap filler,which blend with exclusive formula,that offer superior thermal performance, and compressibility. Due to TIF030-05 is made by high vicosity silicon oil ,that can prevent thermal formula seprate from it. Besides ,compared with traditionally thermal pad, it can control bonded shifiting issue much better.
TIF030-05 operation mold is simliar as grease ,such as silkprint and screen print or automatic injected facility. TIF100-15 can be applied on chip micro processor,PPGAs,Micro BGA package,BGA package,DSP chip,LED lighting and other high power electric component .
TIF030-05 Series Datasheet-REV02.pdf
Application
> Heat-sink & frame
> LED backlight module,LED lighting
> High speed hardware driver
> Micro heat pipe ,Vihicel enginee controler
> Telecom industry,Semiconducor
Feature
> Thermal conductivity: 3W/mK
> Soft, very low compression
> Low thermal inpedance
> Operate automaticly
| TIFTM030-05 Typical Properties | |||
| Color | Blue | Visual | |
| Construction & Composition | Ceramic filled silicon material | ********** | |
| Viscosity | 2000,000cps | GB/T 10247 | |
| Specific Gravity | 3.1 g/cc | ASTM D297 | |
| Thermal conductivity | 3.0 W/mK | ISO 22007-2 | |
| Thermal diffusivity | 1.053 mm2/s | ISO 22007-2 | |
| Specific heat capacity | 3.2 MJ/m3K | ISO 22007-2 | |
| Continuous Use Temperature | -45 ~200°C | ****** | |
| Dielectric breakdown strength | 200 V/mil | ASTM D149 | |
| Flame Rating | 94V0 | E331100 | |
| Outgassing,%TML | 0.70% | ASTM E595 | |

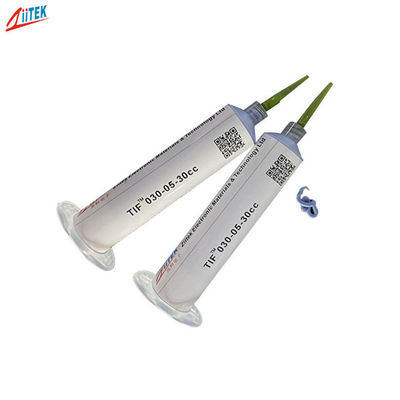

30 cc/pc, 98 pc/box; 300 cc/pc 6 pc/box
We offer the custom packaged in syringes for automated despensing applications.
Please contact us for confirming.
Company Profile
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
Q&A:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
Contact Person: Dana Dai
Tel: +86 18153789196
