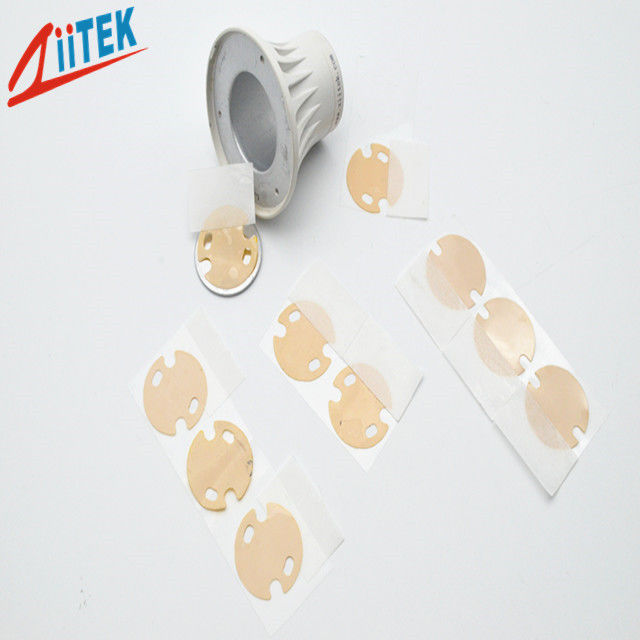

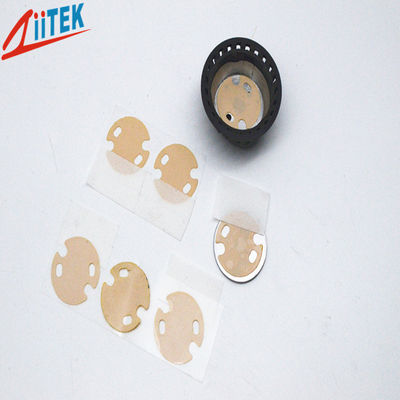

Motor Controllers Light Amber Customized 1.6W Phase Change Thermal Pad 0.102mm Thickness

Motor Controllers Light Amber Customized 1.6W Phase Change Thermal Pad 0.102mm Thickness

Motor Controllers Light Amber Customized 1.6W Phase Change Thermal Pad 0.102mm Thickness
video
Motor Controllers Light Amber Customized 1.6W Phase Change Thermal Pad 0.102mm Thickness
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHS
Model Number: TIC806K
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*23*12cm
Delivery Time: 3-6 work days
Payment Terms: T/T
Supply Ability: 1000000 pcs/month
Contact Now
Detailed Product Description
Features: Resistant To Tears And Punctures Name: Customized1.6W High Quality Phase Change Thermal Pad 0.102mm Thickness High Performance Phase Change Materials
Thermal Conductivity: 1.6W/mK Volume Resistivity: 3.5X10^14 Ohm-meter
Application: Motor Controllers Color: Light Amber
Material: PCM With Kapton Film Keyword: Phase Change Thermal Pad
Highlight:

1.6W Phase Change Thermal Pad

,

Customized Phase Change Thermal Pad

,

Light Amber Phase Change Thermal Pad

Customized1.6W High Quality Phase Change Thermal Pad 0.102mm thickness High Performance Phase Change Materials



TIC800K Series is a high thermal and dielectric performance insulator pad consisting of a ceramic filled phase change compound coated on MT Kapton film.



TIC800K phase change coating all but eliminates contact thermalresistance. The phase change coating melts at 50℃ and replacesallcontact areas that contain air.The role is to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.



TIC800K-Serice-Datasheet(E)-REV01 (1).pdf



Motor Controllers Light Amber Customized 1.6W Phase Change Thermal Pad 0.102mm Thickness 0

Feature:



> Highly compliant surface characteristic with high thermal conductivity
> High thermal conductive and High dielectric strength

> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures





Application:



> Power conversion equipment

> Power semiconductors:T0 packages, MOSFETs & IGBTs

> Audio and Video components

> Automotive control units

> Motor controllers
> General high pressure interface





Typical Properties of TIC™800K series
Product Name TIC™805K TIC™806K TIC™808K Test Method
Color Light Amber Visual
Composite Thickness 0.004"/0.102mm 0.005"/0.127mm 0.006"/0.152mm ASTM D374
MT Kapton ® Thickness 0.001"/0.025mm 0.001"/0.025mm 0.002"/0.050mm ASTM D374
Total Thickness 0.005"/0.127mm 0.006"/0.152mm 0.008"/0.203mm ASTM D374
Specific Gravity 2.0 g/cc ASTM D297
Heat Capacity 1 l/g-K ASTM C351
Tensile Strength >13.5 Kpsi >13.5 Kpsi >17.8 Kpsi ASTM D412
Continuous Use Temp (-58 to 266℉) / (-50 to 130℃) ***
Dielectric Breakdown Voltage >4000 VAC >5000 VAC >6000 VAC ASTM D149
Dielectric Constant 1.8 MHz ASTM D150
Volume Resistivity 3.5*10^14Ohm-meter ASTM D257
Thermal conductivity 1.6 W/mK     ASTM D5470
Thermal Impedance@50psi 0.12℃-in²/W 0.13℃-in²/W 0.16℃-in²/W ASTM D5470


Standard Thicknesses:

0.005"(0.127mm) 0.006"(0.152mm) 0.008"(0.203mm)
Individual die cut shapes and custom thickness can be supplied.Please contact us for confirming.

Standard Sizes:
10" x 100'(254mm x 30.48M)
Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive :
Peressure Sensitive Adhesive is not applicable for TIC™800K Series products


Packaging Details & Lead time



The packaging of Phase Change Material

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time (QTY 5000pcs) :3-5 working days

More than 5000PCS: Please contact us to negotiation



Company Introduction



Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.



Motor Controllers Light Amber Customized 1.6W Phase Change Thermal Pad 0.102mm Thickness 1



FAQ:



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.



Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.



Our services



Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples



After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.
